ZONESUN ZS-CF Automatic Carbonated Soft Drink Mixing Machine CO2 Carbonation System for Sparkling Juice

Description

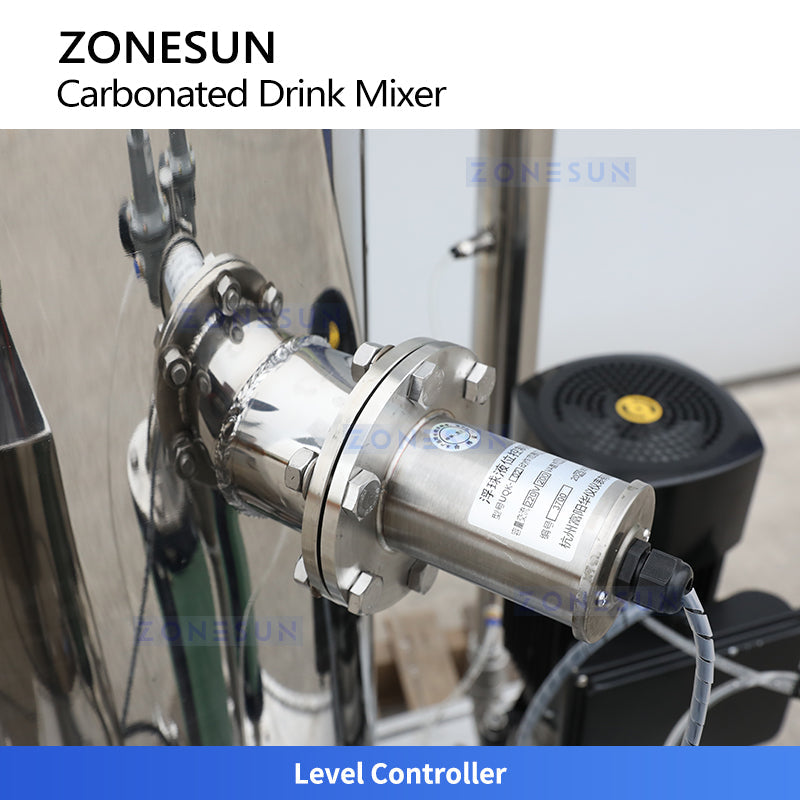

The ZONESUN ZS-CF is a high-efficiency carbonated beverage mixing machine designed for producing soda water, sparkling drinks, cola, and other carbonated beverages. With a capacity of 1.5-2 t/h, it mixes treated water, syrup, and CO₂ under controlled pressure to achieve precise carbonation and stable product quality. Equipped with rotameters, a multistage centrifugal pump, automatic level control, and a stainless-steel mixing tank, the system ensures accurate syrup-to-water ratios, efficient CO₂ dissolution, and consistent beverage performance. Compact, reliable, and easy to operate, it is ideal for small to medium-scale production lines.

Not compatible across different voltage and frequency options (110V 50Hz / 110V 60Hz / 220V 50Hz / 220V 60Hz).

ZS‑CF

Technical Requirements

• Production Capacity: 1.5–2 t/h
• Mixing Ratio (Syrup : Water): 1:2–1:8
• Outlet Temperature: < 6°C
• Outlet Pressure: 0.3–0.5 MPa
• Carbonation Level: 3 G.V
• Machine Dimensions: Approx. 900 × 820 × 1650 mm
• Mixing Tank Diameter: 400 mm
• Tank Total Height: 1100 mm

Raw Material Requirements

• Treated Water Inlet Pressure: 0.2 MPa
• Treated Water Inlet Temperature: < 6°C
• Syrup Inlet Temperature: < 4°C
• CO₂ Inlet Pressure: 0.28–0.35 MPa
• CO₂ Purity: > 99%
