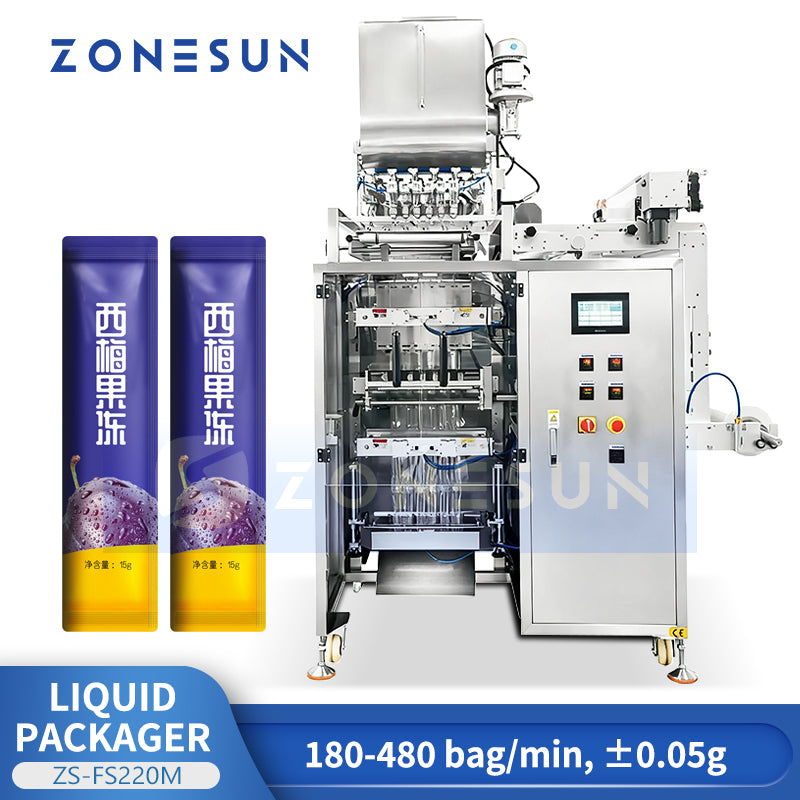

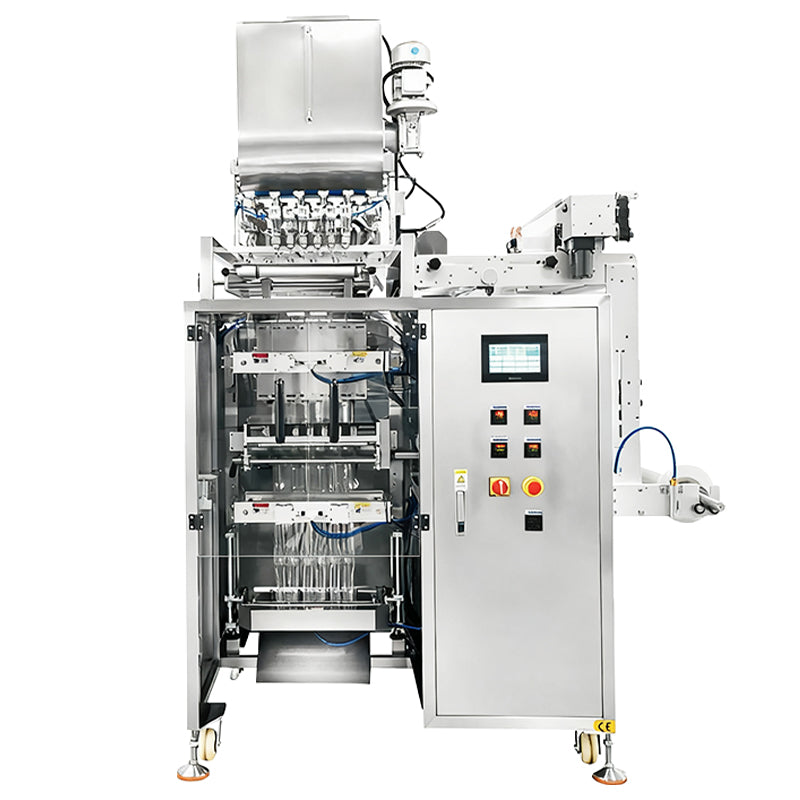

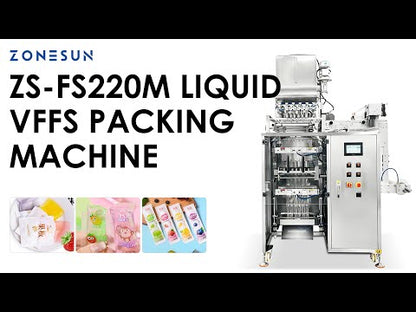

ZONESUN ZS-FS220M Multi-Lane VFFS Liquid Sachet Packaging Machine | Filling & Sealing

Description

The ZONESUN ZS-FS220M is a high-efficiency VFFS machine designed for multi-lane liquid sachet packaging. It integrates film feeding, pouch forming, liquid filling, heat sealing, coding, and cutting into one compact system. Supporting up to 10 lanes and reaching speeds of up to 480 bags per minute, it’s ideal for high-volume production of single-use liquid sachets. The machine accommodates both volumetric cup and weigher-based dosing, ensuring precise filling across a wide range of viscosities. Its modular sealing jaws and cutting options allow for flexible pouch formats, while the integrated ribbon coding system ensures traceability and compliance.

Parameter

• Machine Name: ZS-FS220M
• Lane Number: 3–10 lanes
• Packing Speed: 180–480 bags/min
• Precision: ±0.05 g
• Bag Size: Length 50–180 mm / Width 25–100 mm
• Film Width: Max 600 mm
• Film Thickness: 0.07–0.1 mm
• Measuring Method: Volumetric Cup / Weigher
• Power Supply: AC 220V / 380V / 50Hz / 7.5 kW
• Voltage: 220V
• Automation Level: Fully Automatic
• Material Compatibility: Plastic Film / Composite Film
• Sealing Type: Heat Sealing (Vertical & Horizontal)
• Machine Dimensions: 1550 × 1080 × 2350 mm
• Machine Weight: 600 kg

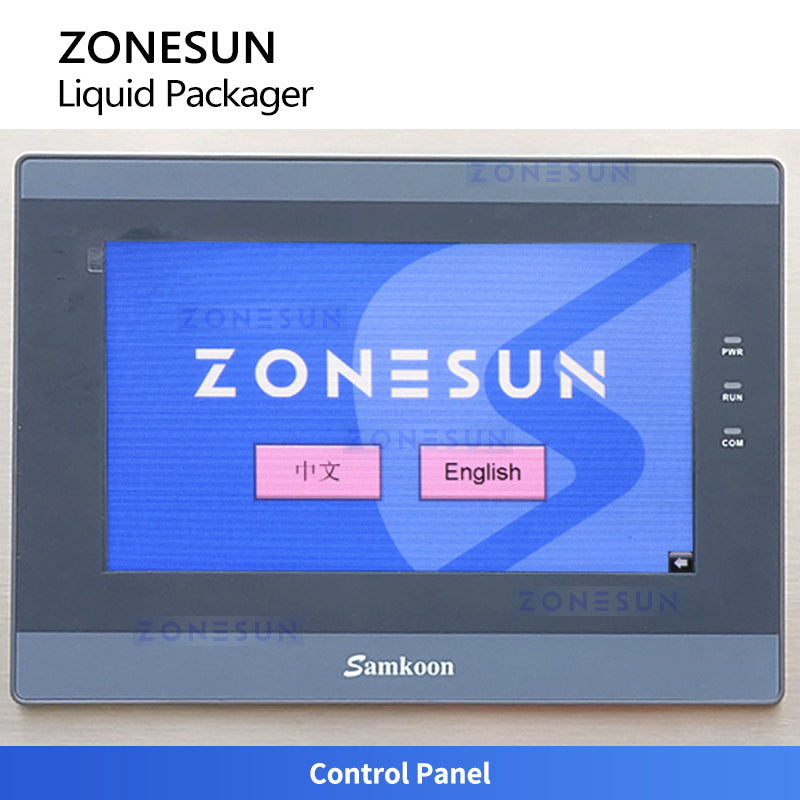

Control Panel

Digital touch interface for controlling temperature, filling volume, speed, bag length, and supports multilingual operation.

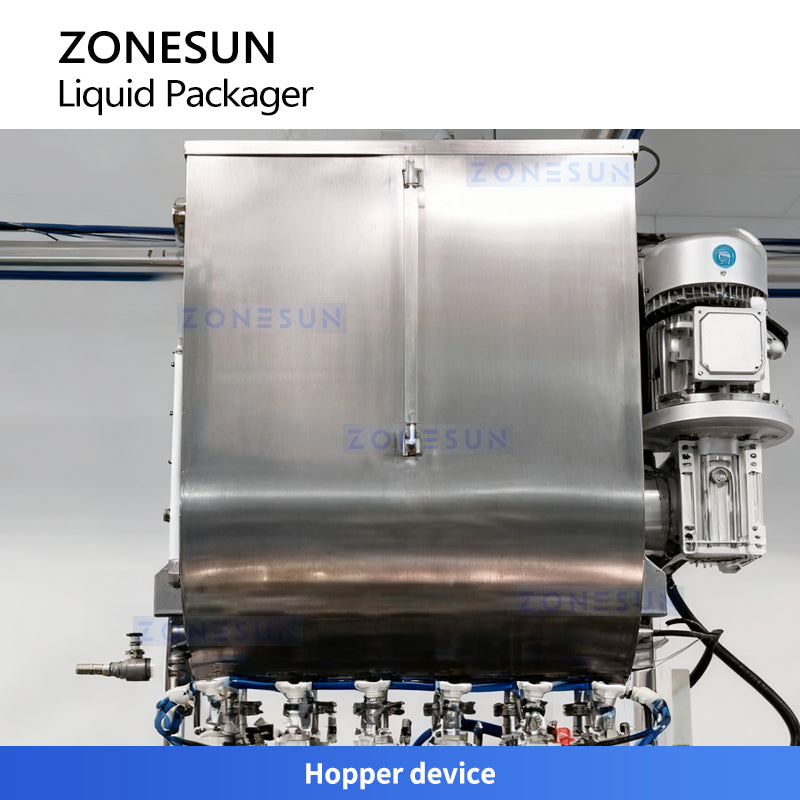

Hopper device

Stores liquid materials and feeds them into the filling system using gravity and pumping.

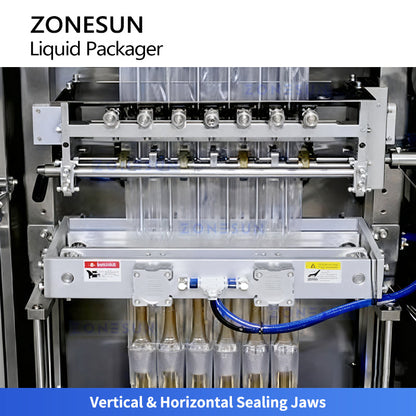

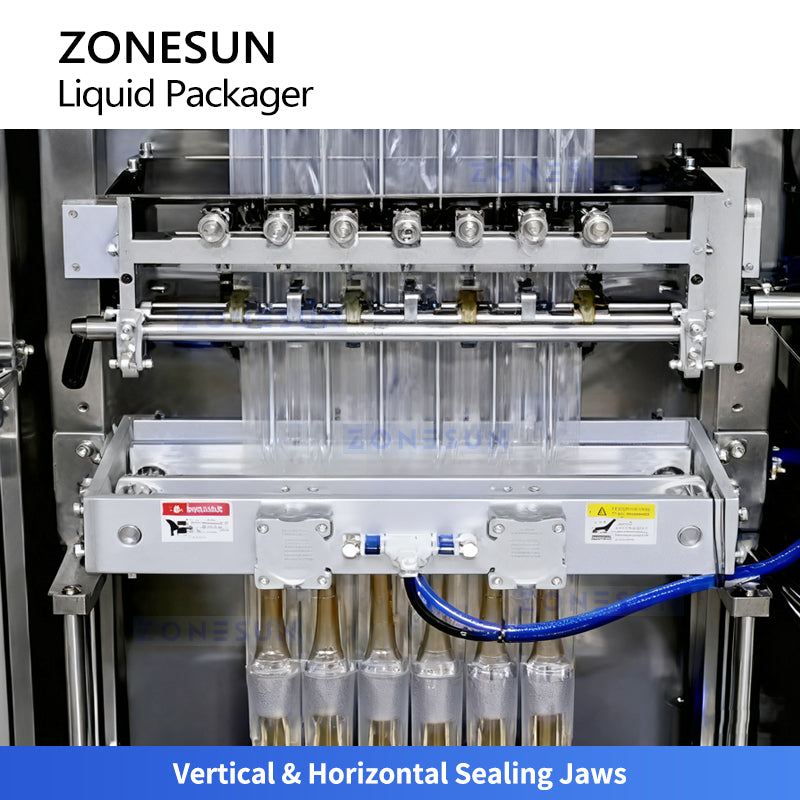

Vertical & Horizontal Sealing Jaws

Seals the pouch’s back,top and bottom openings to form a fully enclosed, leak-proof package.

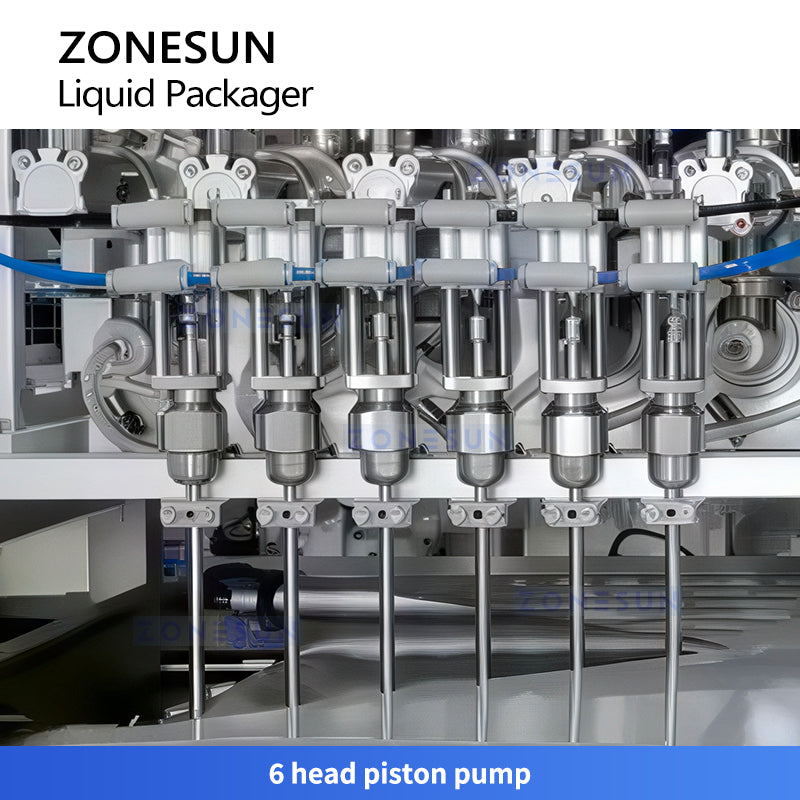

6 head piston pump

Enables simultaneous multi-lane filling to increase production efficiency.

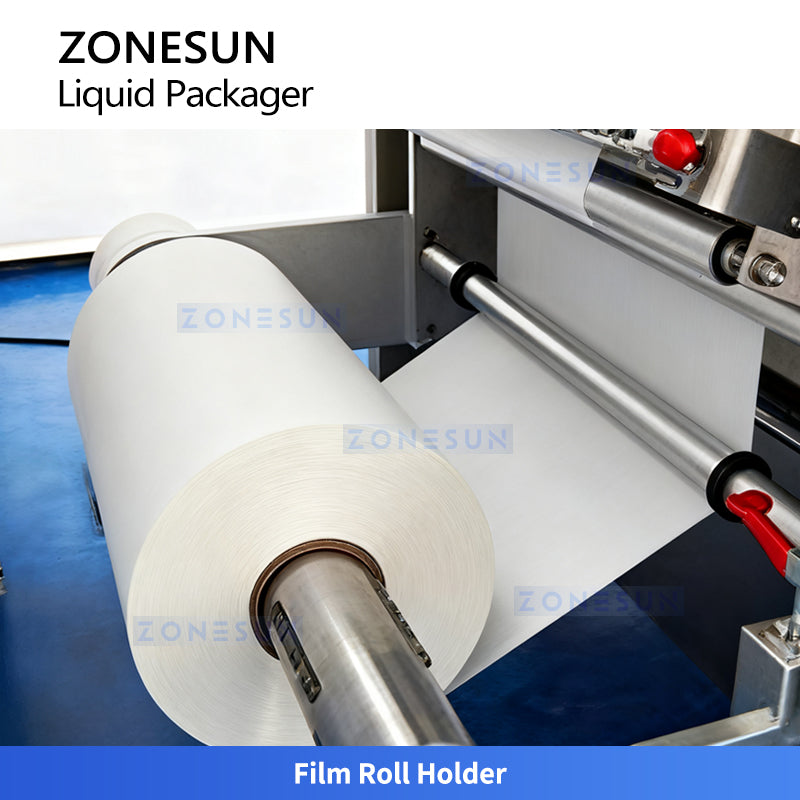

Film Roll Holder

Holds packaging film and automatically feeds it to the forming area; supports multi-lane cutting.

Ribbon coding machine

Prints date, batch, and expiry info onto each pouch using thermal ribbon.
