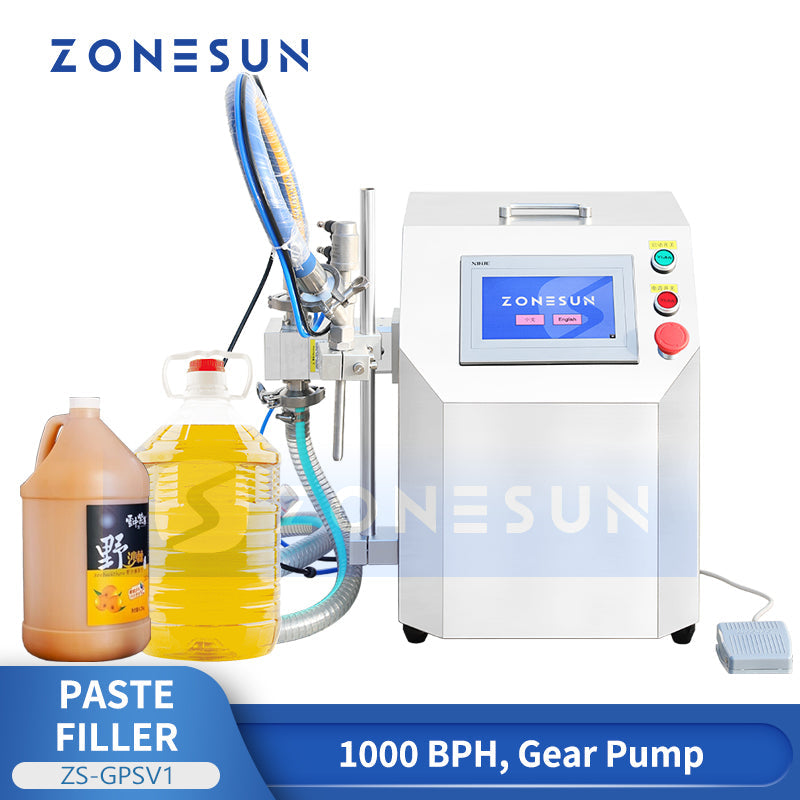

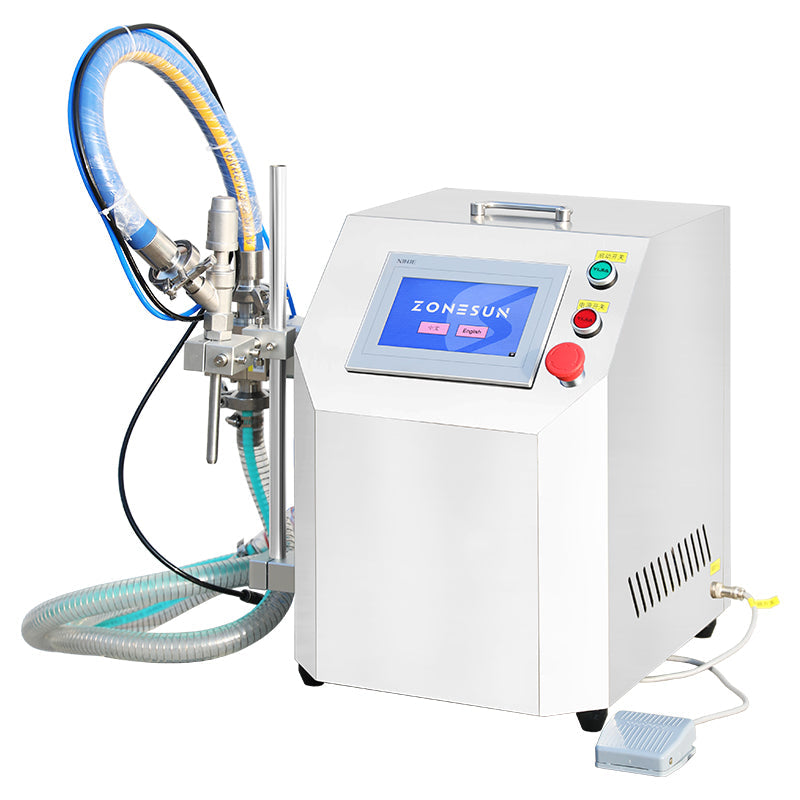

ZONESUN ZS-GPSV1 Servo Gear Pump Liquid Paste Filling Machine Quantitative Viscous Liquid Filler

$2,079.00 USD

~~$0.00 USD~~ $2,079.00 USD

Em promoção Esgotado

Envio calculado na finalização da compra.

voltage 110V 220V Filling Nozzle

Filling Nozzle Diameter 12mm 25mm

DESCRIPTION

The ZONESUN ZS-GPSV1 is a high-performance automatic filling solution specifically engineered for oil-based products. Driven by a precision servo gear pump system, this machine excels in handling various viscosities, from light essential oils to heavy motor oils and lubricants.

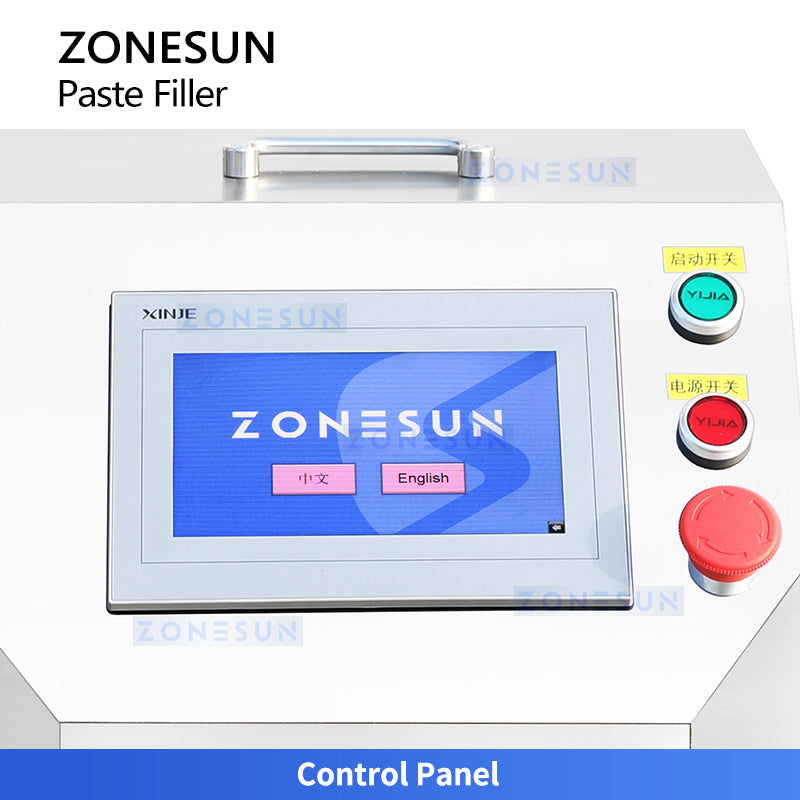

The integrated PLC control system allows for micron-level dosing precision and rapid volume adjustments via the touch screen. Built with high-strength, corrosion-resistant alloys, the ZS-GPSV1 ensures a robust and reliable production environment. Its specialized gear pump design provides a steady, pulse-free flow, making it a dependable workhorse for the automotive, food, and industrial chemical sectors.

Note: Not suitable for materials containing solid particles.

The standard filling nozzle sizes are 12 mm and 25 mm. Kindly confirm that your bottle opening size is compatible before placing an order. Thank you for your support.

PARAMETER

Model: ZS-GPSV1
Machine voltage: 110/220V 50-60HZ
Filling range: 10-200ml / 200ml-3L / 3L-10L / 10-25L

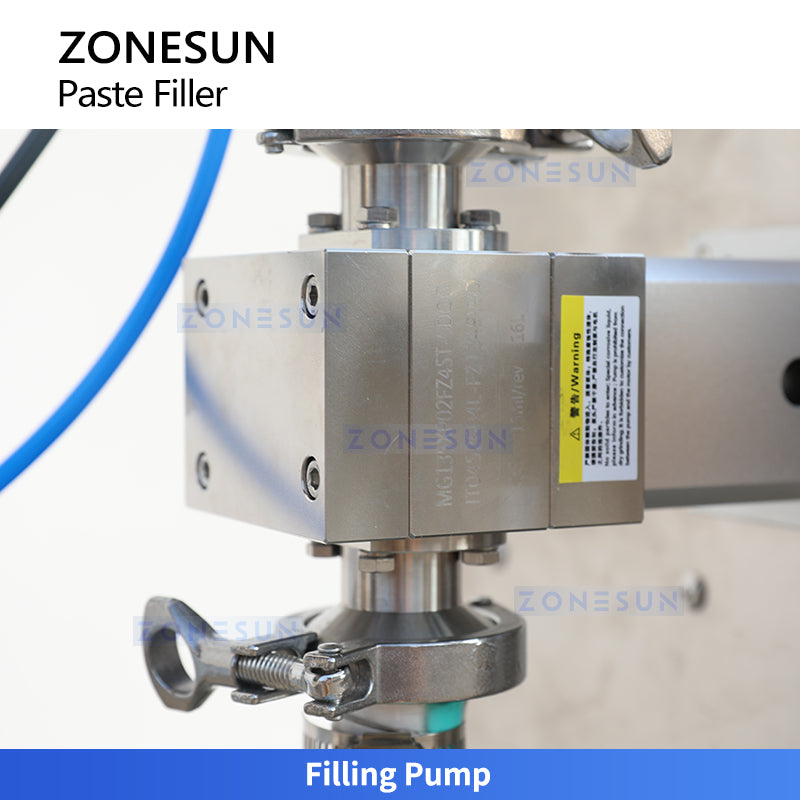

Filling pump: Gear Pump

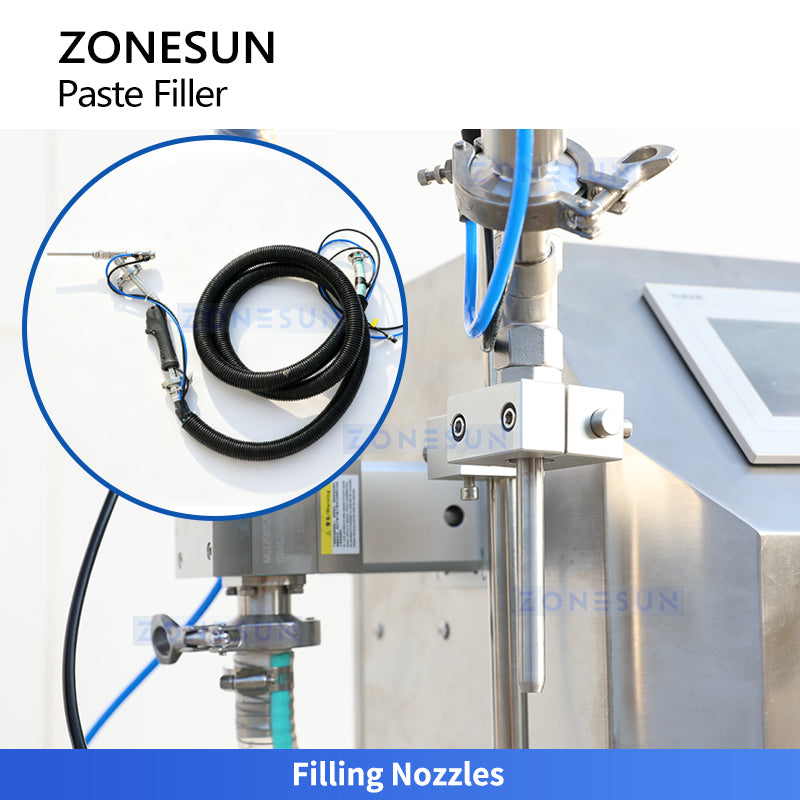

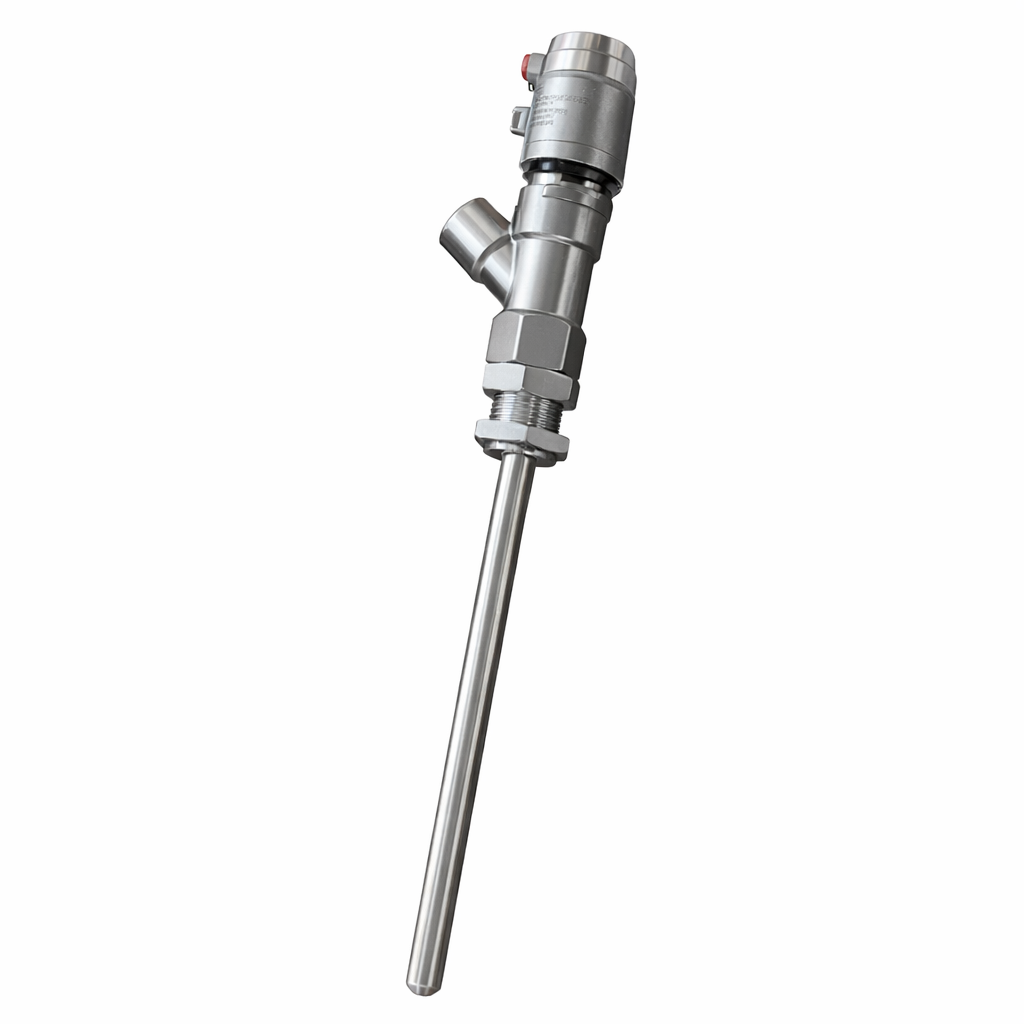

Filling nozzle: Regular Fixed Nozzle & Handheld Nozzle
Suitable bottle size: Customizable
Filling accuracy: ±1%
Working capacity: 900-1000 BPH (based on 300ml)
Machine casing: SUS304

Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!

NOTE：Note: 110V machine needs to be connected to a transformer
