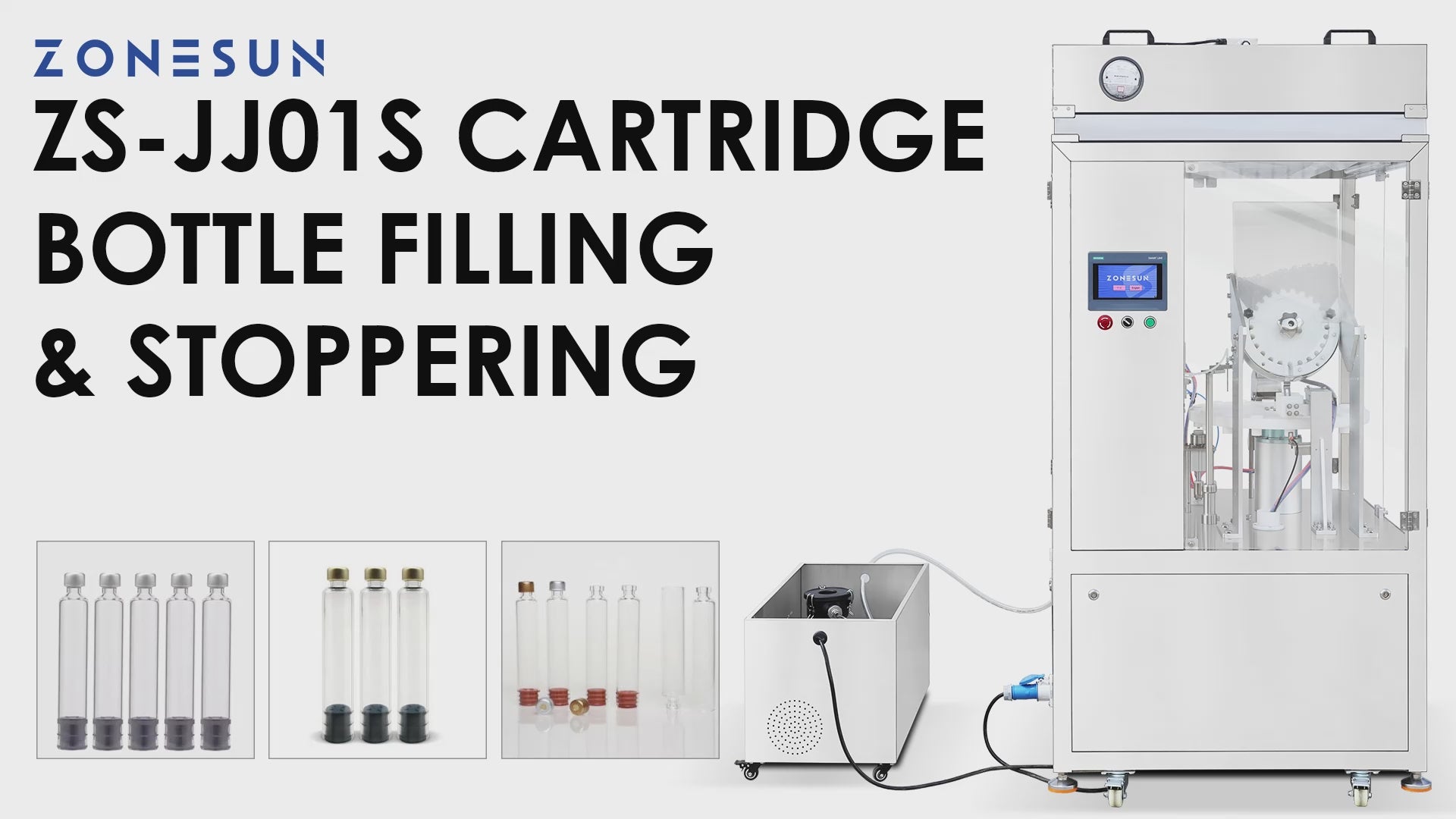

ZONESUN ZS-JJ01S Automatic Cartridge Filling & Stoppering Machine

ZONESUN ZS-JJ01S Automatic Cartridge Filling and Stoppering Machine

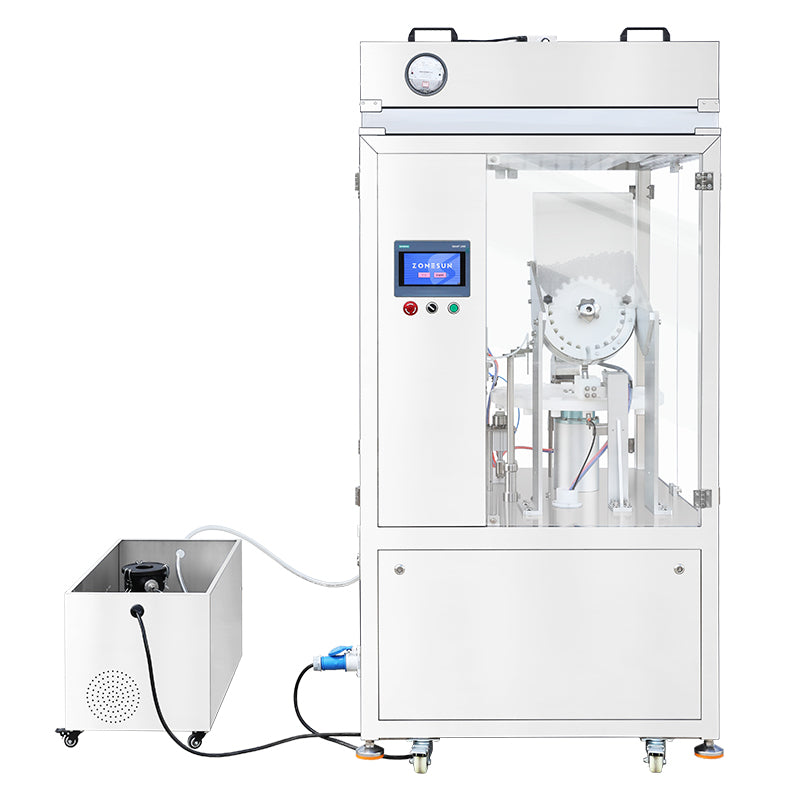

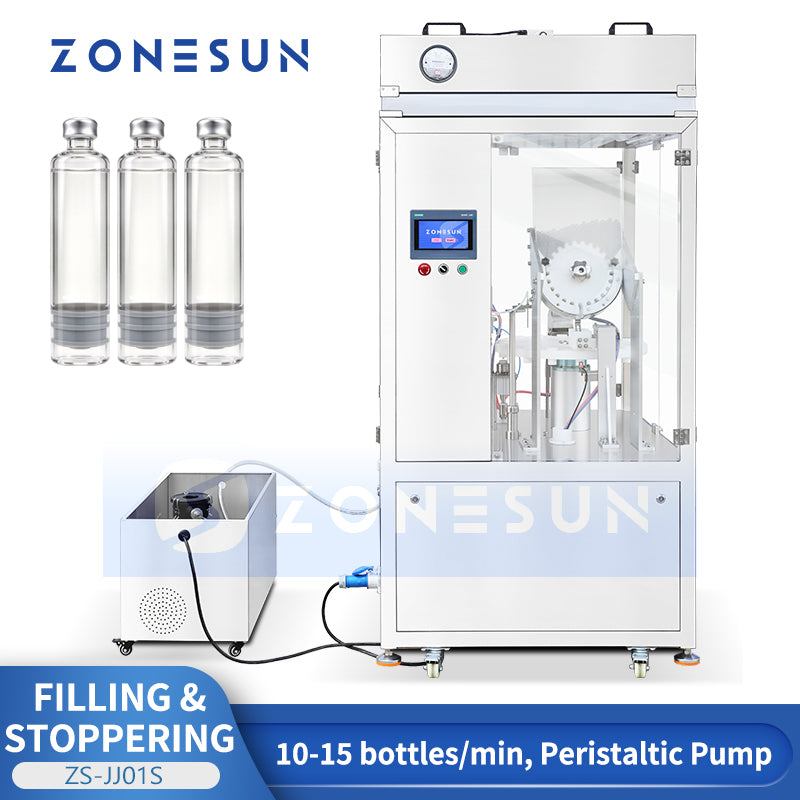

The ZONESUN ZS-JJ01S integrates automatic cartridge feeding, peristaltic pump filling, rotary positioning, vacuum-assisted rubber stoppering and finished cartridge discharge into one automated process.

Featuring servo-driven filling, PLC touchscreen control and a laminar flow hood, the machine supports filling volumes of 1–10 mL, specified accuracy of ≤±3% and production speeds of approximately 10–15 cartridges/min.

Customizable handling components accommodate compatible cartridge sizes, making the machine suitable for small-volume liquid filling and stopper insertion applications.

Confirm liquid compatibility, cartridge dimensions and required processing conditions before ordering.

Parameter

• Machine Model: ZS-JJ01S
• Machine Type: Automatic Rotary Cartridge Filling and Stoppering Machine
• Production Capacity: 10–15 cartridges/minute
• Number of Filling Heads: 1
• Filling Accuracy: ≤±3%
• Filling Drive: Servo Motor Drive
• Filling Method: Peristaltic Pump
• Filling Range: 1–10 mL
• Applicable Cartridge Height: Customizable
• Applicable Cartridge Diameter: Customizable
• Machine Power: 3.1 kW, 9 A
• Cartridge Unscrambler: Hopper-Type Cartridge Unscrambler
• Power Supply: 110/220/380 V, 50/60 Hz
• Air Pressure: 0.6–0.8 MPa
• Machine Dimensions (L × W × H): 1100 × 1050 × 2150 mm
• Net Weight: 200 kg

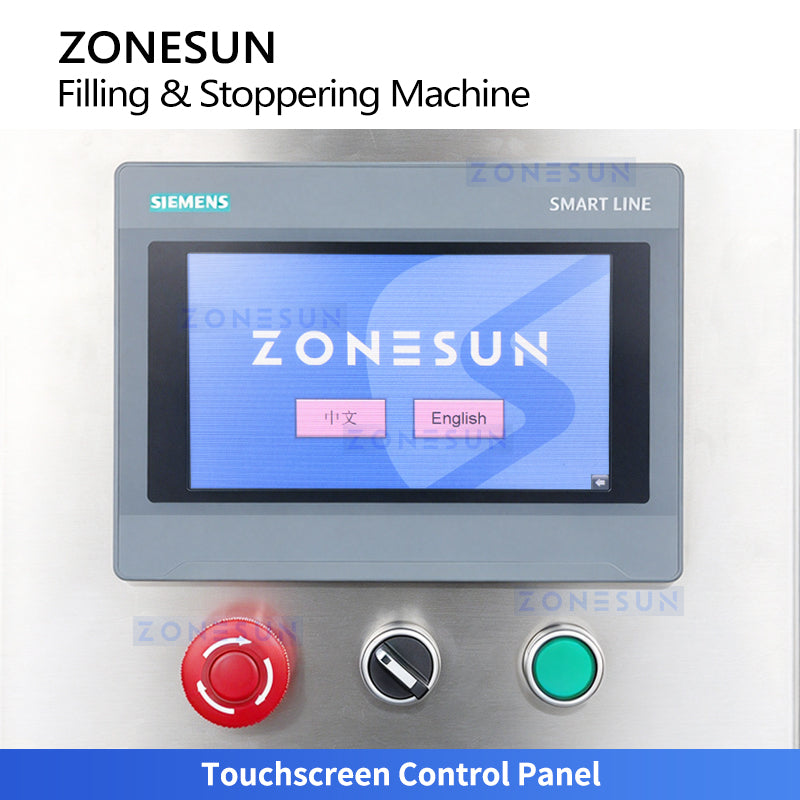

Touchscreen Control Panel

Adjust filling and stoppering parameters and monitor machine operation through the touchscreen interface.

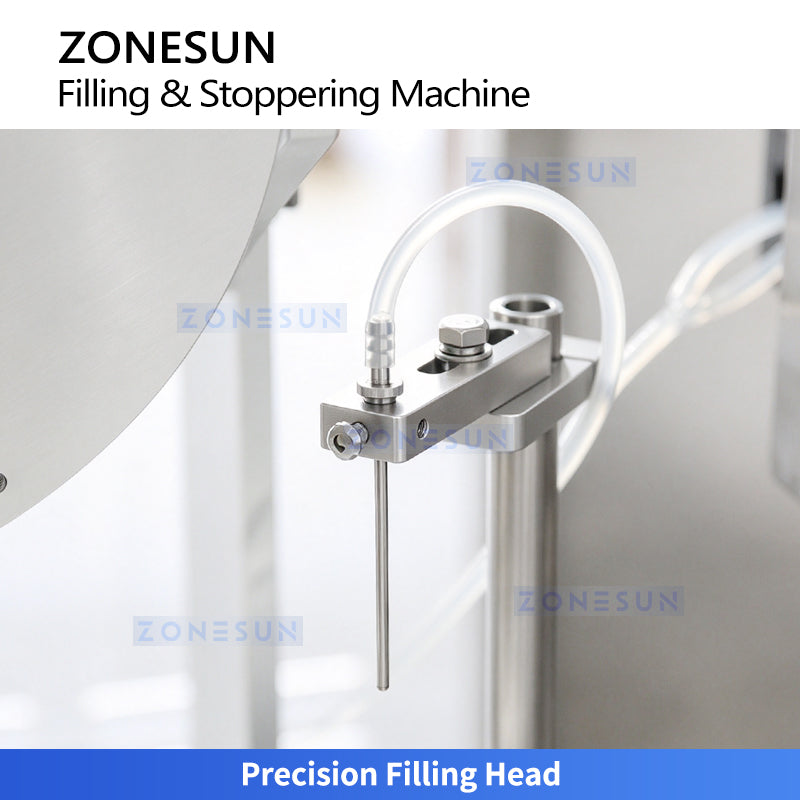

Precision Filling Head

Dispenses controlled liquid volumes into cartridges for consistent filling.

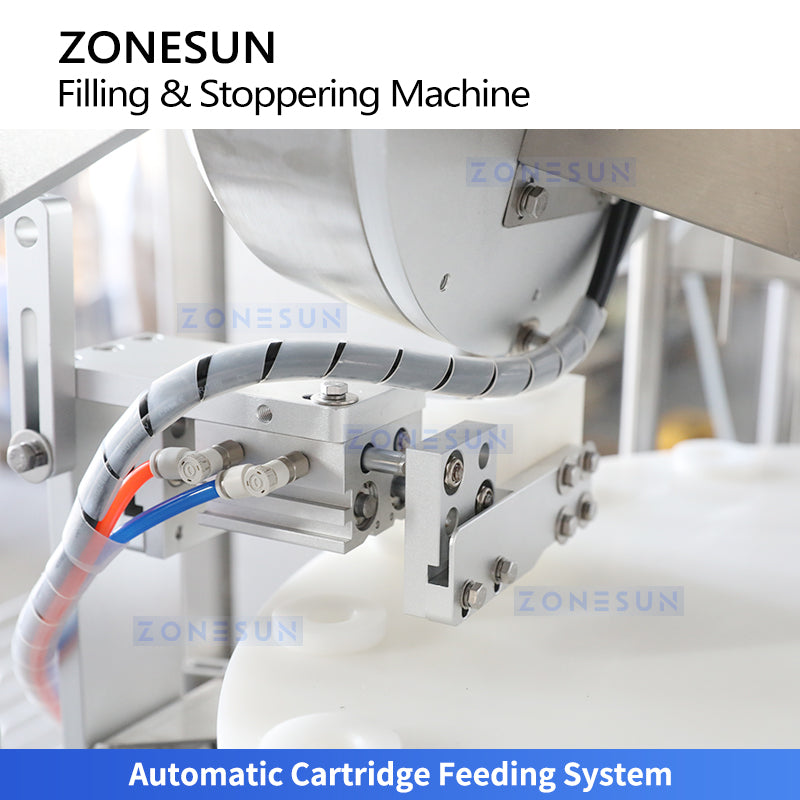

Automatic Cartridge Feeding System

Automatically positions cartridges vertically in the rotary turntable slots for filling and stoppering.

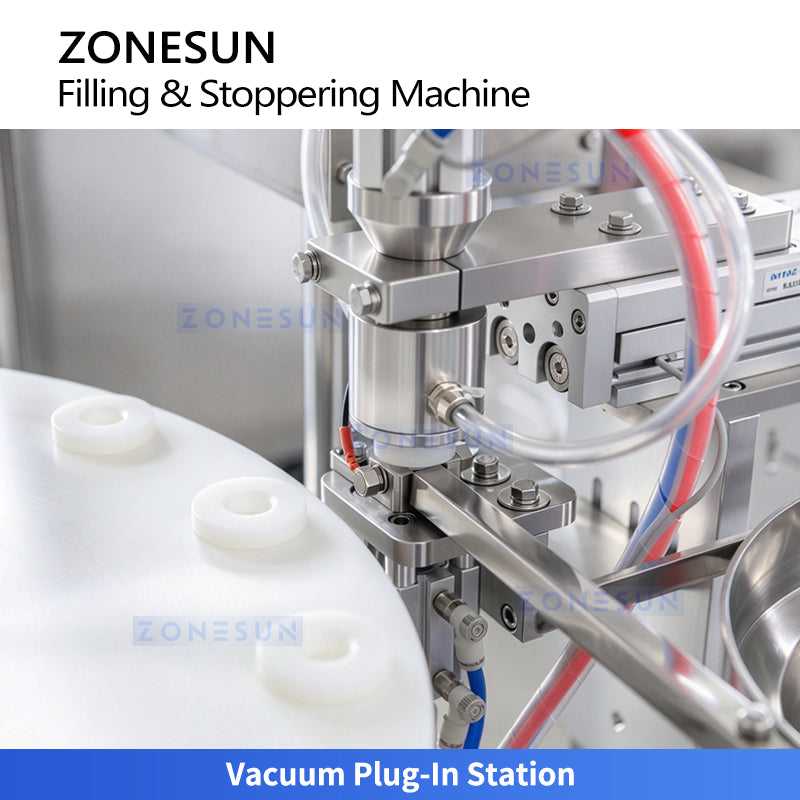

Vacuum Stoppering Station

Uses vacuum assistance to insert rubber stoppers into cartridges with consistent positioning.

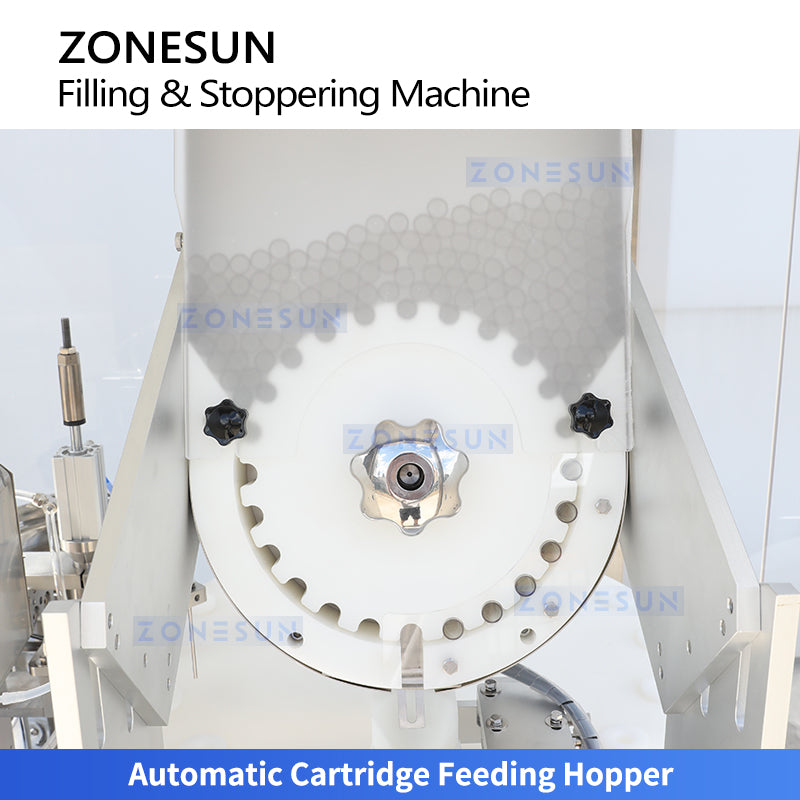

Automatic Cartridge Feeding Hopper

Stores and organizes cartridges for continuous automatic feeding.

Laminar Flow Hood

Provides controlled airflow over the processing area to help maintain a cleaner working environment.

Finished Cartridge Discharge Chute

Guides finished cartridges out of the machine for easy collection and downstream handling.

Vacuum Pump System

Supplies the vacuum required for controlled rubber stopper insertion.
