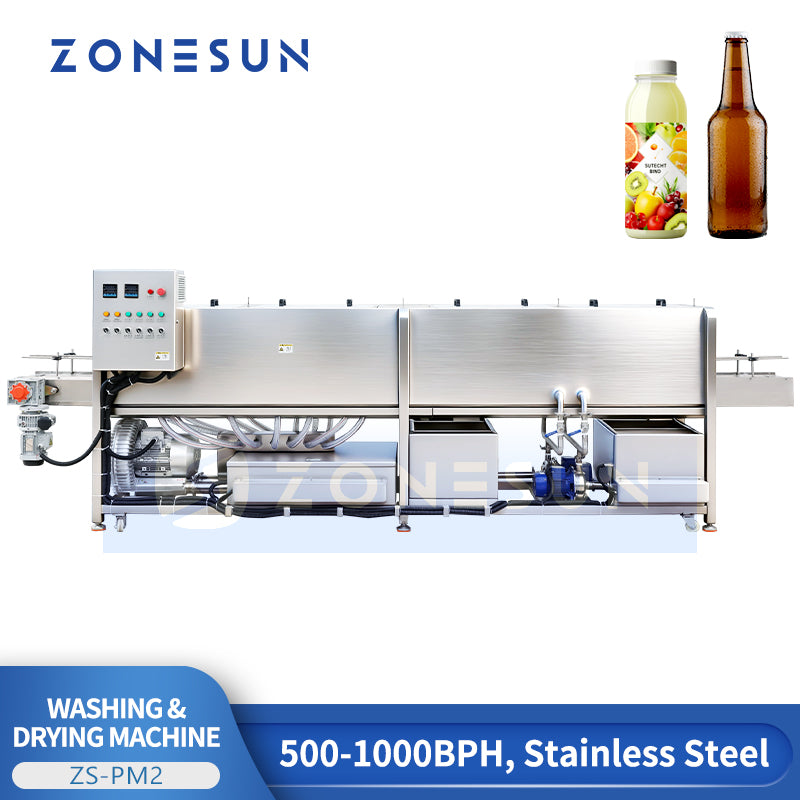

ZONESUN ZS-PM2 Tunnel Pasteurizer for Food & Beverage with Washing Dryer Function
ZONESUN ZS-PM2 Tunnel Pasteurizer for Food & Beverage with Washing Dryer Function
Não foi possível carregar a disponibilidade de recolha
Description

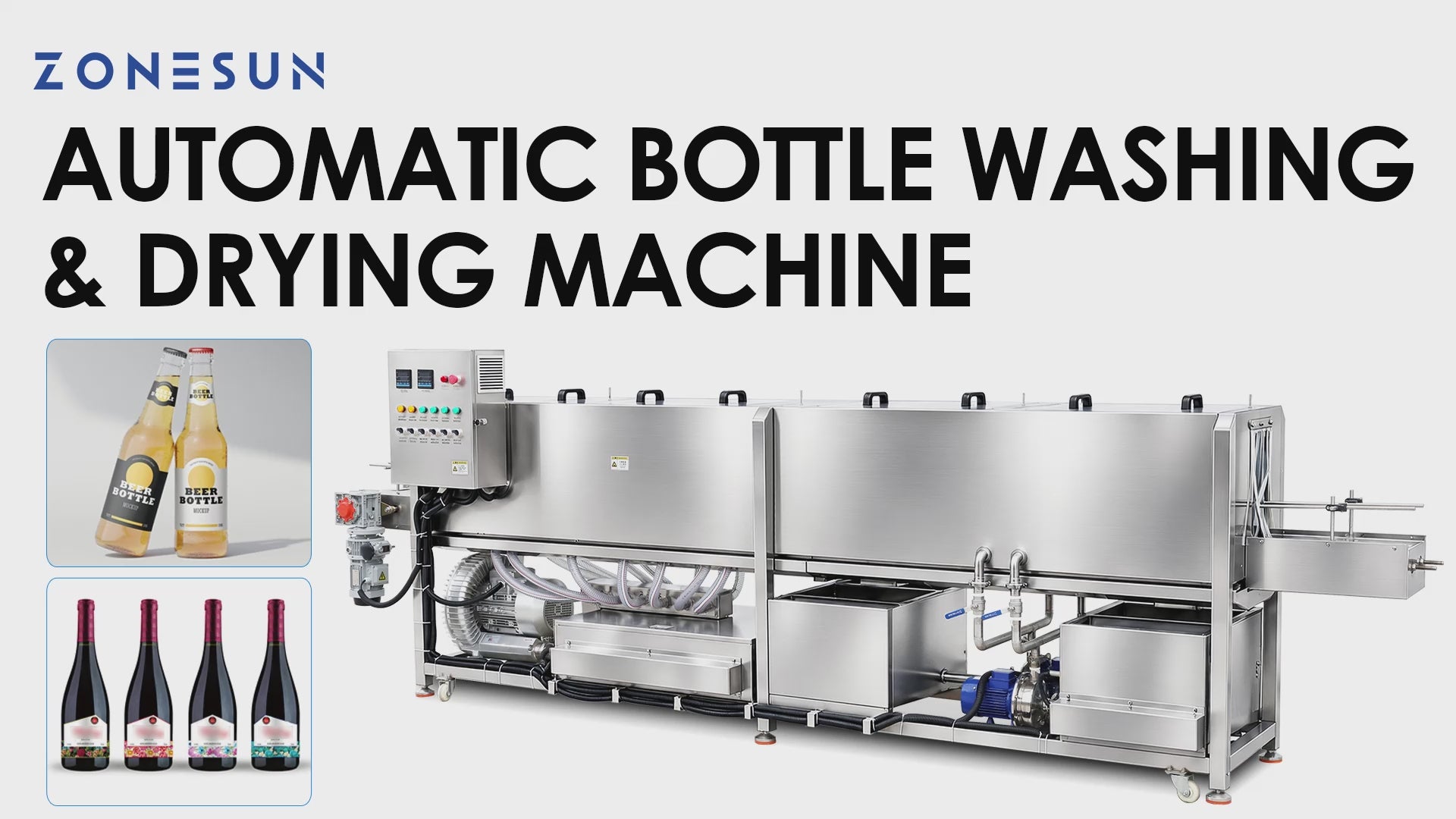

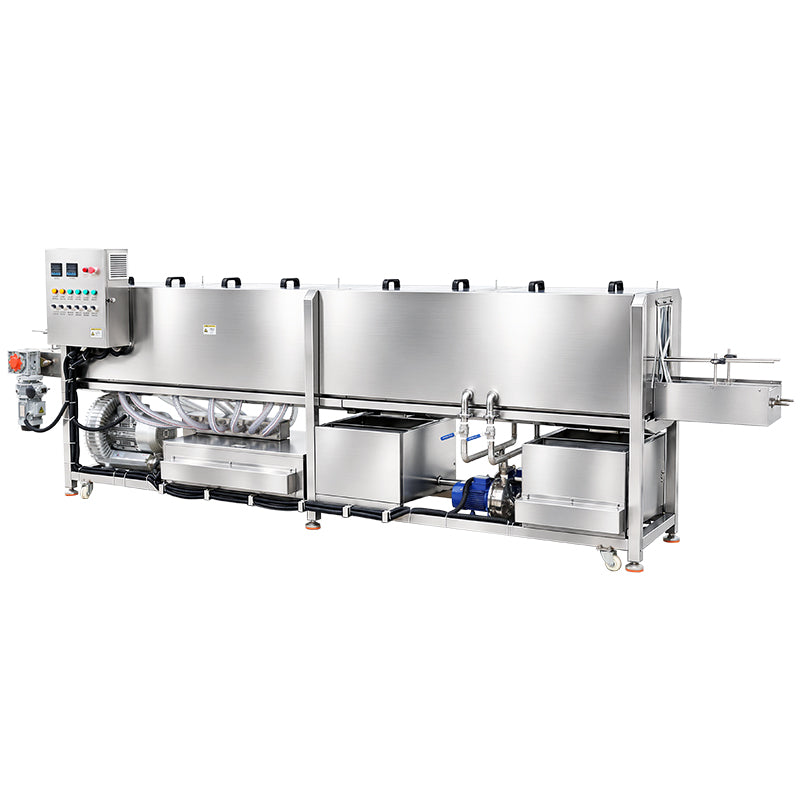

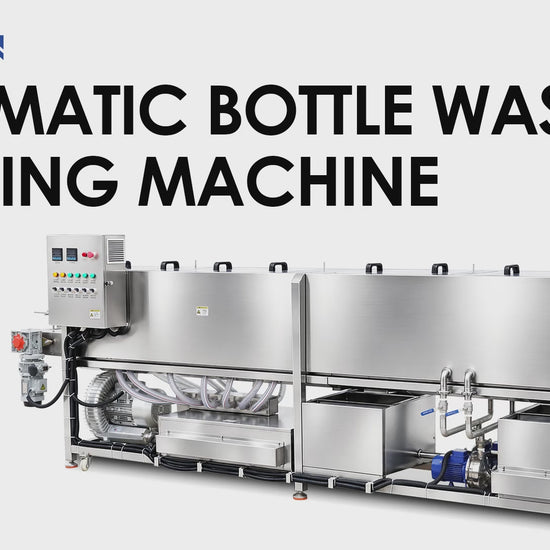

The ZONESUN ZS-PM2 is a tunnel-type Washing Dryer designed for bottles and cans. Running at 500–800 pieces per hour, it adopts spraying water zones with controlled temperatures (0–98℃) to achieve preheating, sterilization, heat preservation, and cooling. Built with stainless steel and equipped with integrated washing and drying functions, it ensures stable sterilization time and consistent product quality. Suitable for beer, juice, milk, coffee, and other hot-fill beverages, it provides reliable, efficient, and long-lasting performance for medium-scale production lines.
Technical Specifications
| Model | ZS-PM2 |
|---|---|
| Production Capacity | About 500–1000 bottles/hour |
| Motor Power | 0.55 kW |
| Power Supply | 380 V / 50 Hz |
| Water Pump Power | 0.75 kW × 2 |
| Air Pump / Blower Power | 5.5 kW × 1 |
| Water Tank Heating Power (Optional) | 12 kW |
| Electric Heating Box Power | 12 kW |
| Total Operating Power Range | 19.55–31.55 kW |
| Conveyor Chain | Stainless Steel Chain |
| Conveyor Drive | Reducer |
| Machine Dimensions (L × W × H) | 4500 × 850 × 1220 mm (Customizable) |
Applications
- Washing and drying compatible bottles before downstream processing.
- Container preparation for beverage, cosmetic and other packaging projects.
- Continuous rack-based container handling where material and geometry suit the configured washing and drying system.
Product Details

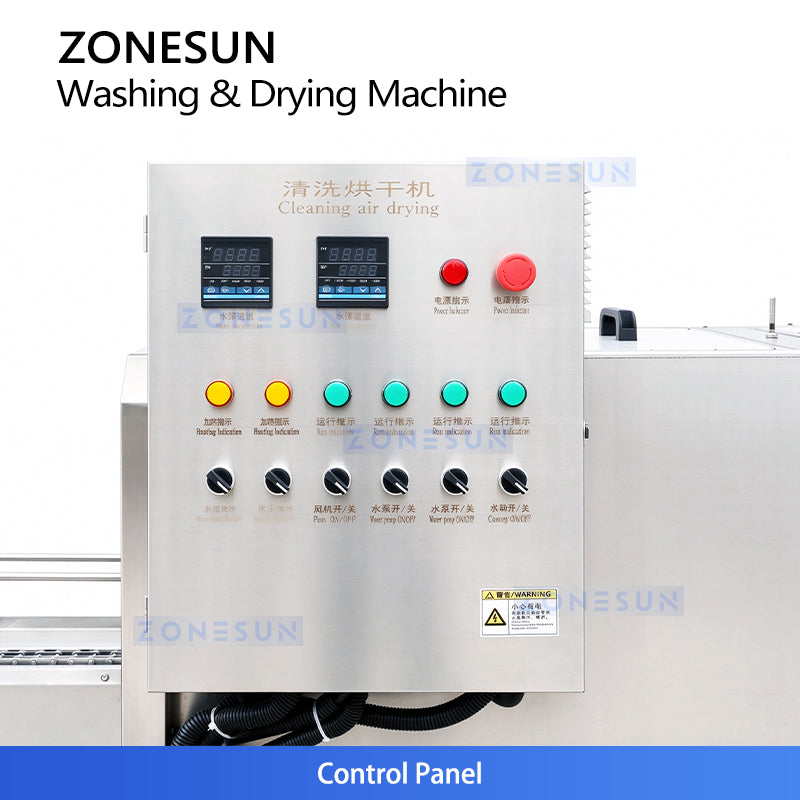

Control Panel
Set and monitor washing, drying and conveyor operating parameters.

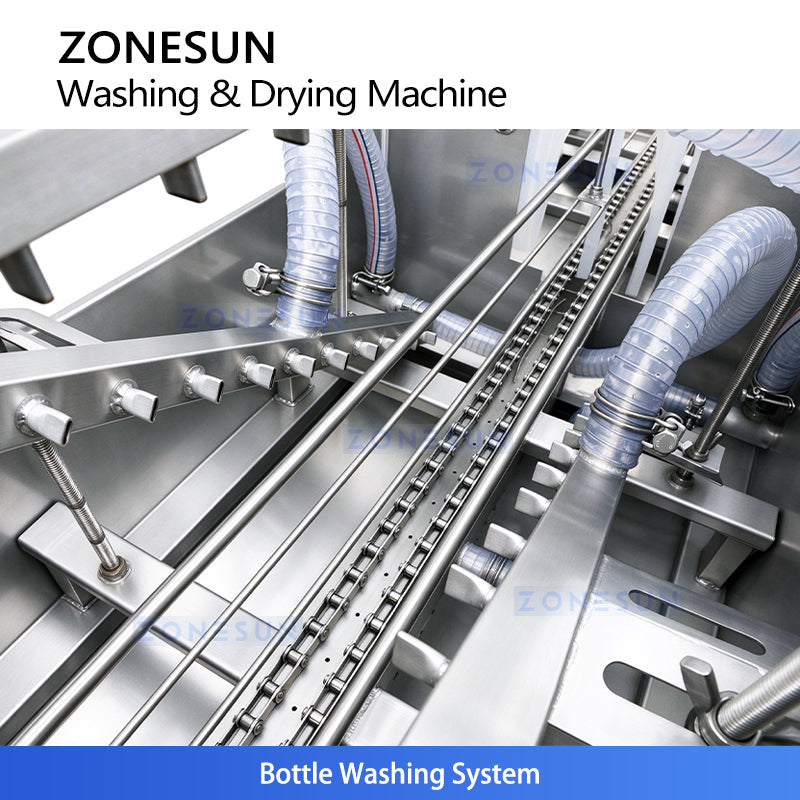

Washing Section
Uses water or hot water to rinse compatible bottles. Internal-rinsing coverage should be evaluated with the actual bottle and carrier arrangement.

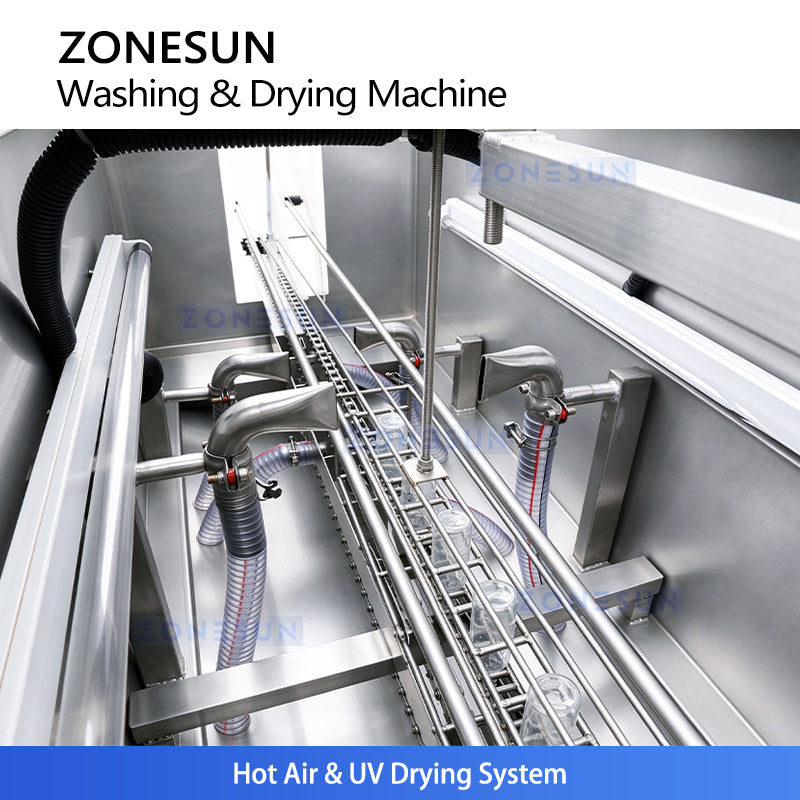

Heated-Air Drying Section
Heated airflow removes residual moisture. UV treatment is mentioned in the original configuration description; its inclusion and treatment specifications require confirmation.
Blower System
Supplies airflow to the drying section.

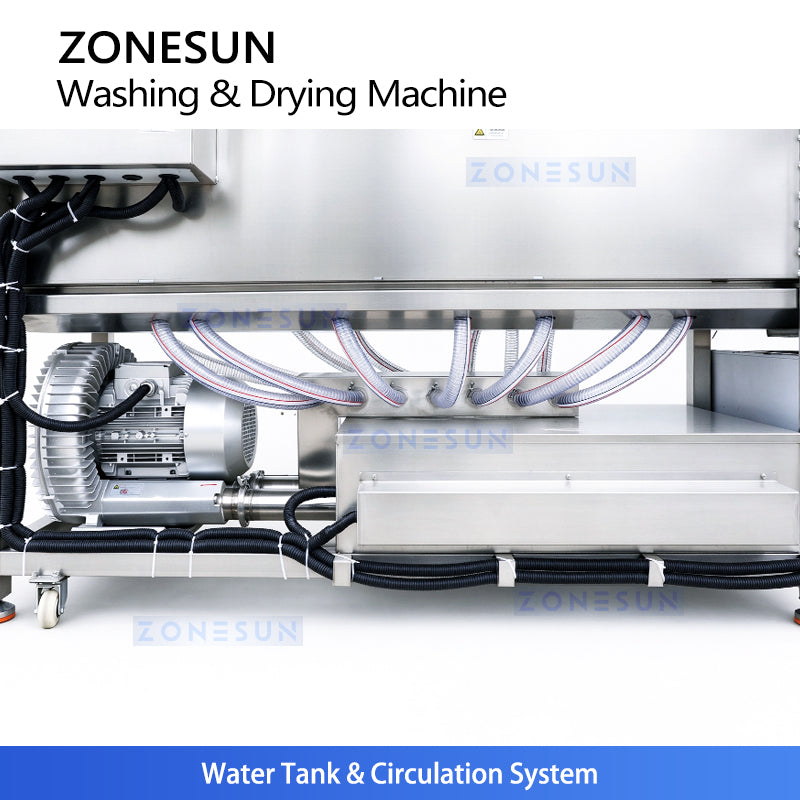

Water Circulation
Collects washing water and supplies the washing section through the pumps.
Bottle Carrier Rack
Holds multiple bottles for transport through the washing and drying sections.
