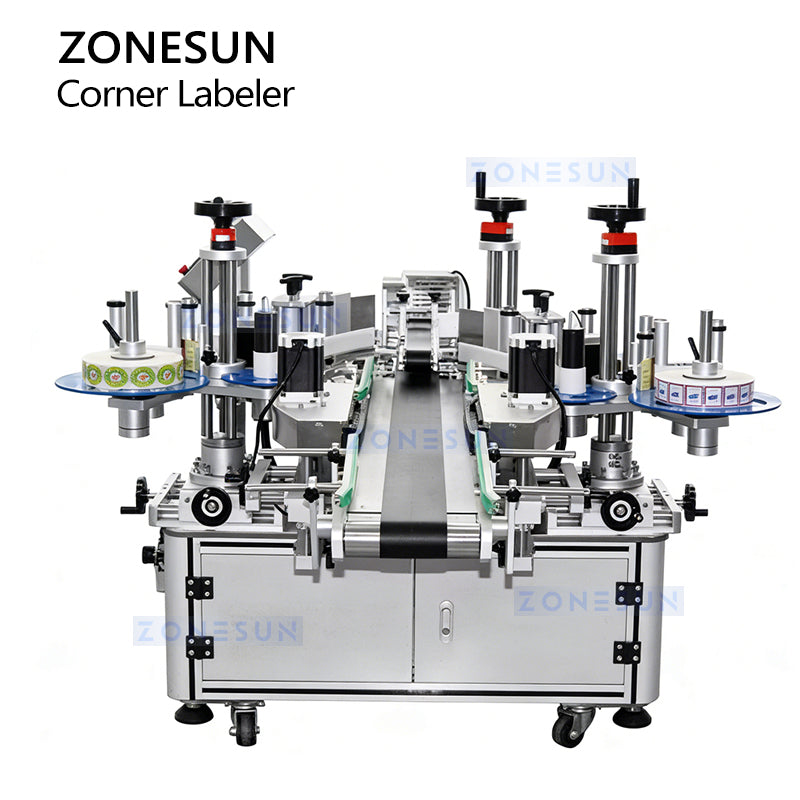

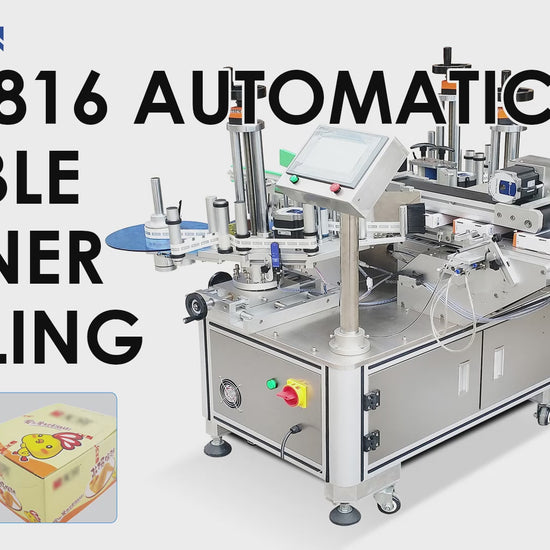

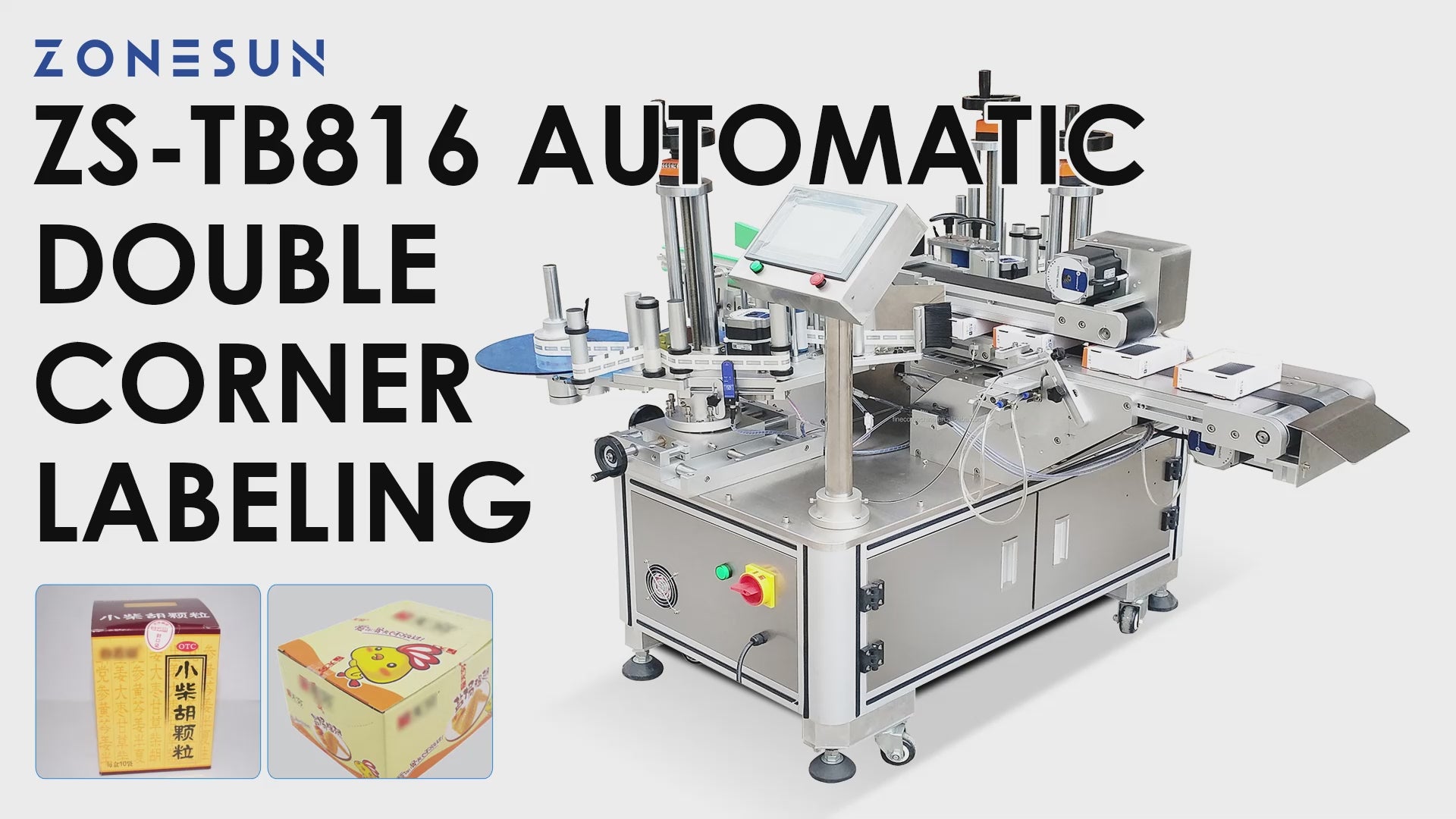

ZONESUN ZS-TB816 Double-Side Anti-Tamper Corner Seal Labeling Machine
ZONESUN ZS-TB816 Double-Side Anti-Tamper Corner Seal Labeling Machine
Não foi possível carregar a disponibilidade de recolha
Description
The ZONESUN ZS-TB816 is a double-side anti-tamper corner labeling machine designed for carton sealing labels. With an automatic conveyor, it can run independently or integrate into a production line, and optional feeding systems support fully automated loading. The labeling heads can be positioned on the side or top surface to meet different corner-folding or dual-side labeling needs. With stable performance, precise alignment, and flexible configuration, it provides an efficient solution for tamper-evident carton labeling, suitable for cosmetic boxes, pharmaceutical cartons, electronic packaging, and other box-type products.
Main Applications
1. Suitable for top and side labeling of flat, slightly curved, or irregular surfaces, such as flat surfaces, cosmetic boxes, plastic lids, and similar products.
2. Widely used in food, cosmetics, pharmaceuticals, daily chemicals, electronics, printing, and other industries.
3. Supports batch labeling with date coding for efficient and stable operation.
4. Customization supported.
Parameter
- Model: ZS‑TB816
- Label Type: Opaque & transparent self‑adhesive labels
- Accuracy: ±1 mm
- Capacity: 40–120 pcs/min
- Sleeve Size: L 40–400 mm / W 20–200 mm / H 0.2–150 mm (customizable)
- Label Size: L 15–100 mm / W 15–130 mm
- Label Roll: ID 76 mm / OD ≤ 260 mm
- Voltage: 220 V, 50/60 Hz (customizable)
- Power: 1030 W
- Machine Size: 1930 × 695 × 1390 mm
- Package Size: 1950 × 730 × 1450 mm
- Net Weight: 180 kg
- Gross Weight: 330 kg
Touch screen
Provides a PLC-based touch interface for machine debugging, parameter setting, and controlling start and stop operations.
Label Sensor
Detects label position with high accuracy to ensure precise dispensing and consistent labeling alignment.
Topping structure
The top pressure belt and the conveyor belt have the same speed, which drives the product so that the product is conveyed in a straight line without dislocation.
Corner structure
After half of the label is applied, the corner brush folds and presses the remaining half onto the other side to complete the corner seal.
