ZONESUN ZS-UWB6 Automatic Ultrasonic Vial Washing Rinsing Machine
ZONESUN ZS-UWB6 Automatic Ultrasonic Vial Washing Rinsing Machine
Não foi possível carregar a disponibilidade de recolha
Description
The ZONESUN ZS-UWB6 is an automatic ultrasonic vial washing machine designed for pharmaceutical-grade cleaning of 3–10 ml vials. Operating at 200–450 vials per minute, it integrates multi-stage rinsing, ultrasonic cleaning, PW/WFI high-purity rinsing, drying, sterilization, unloading, and inspection into a continuous GMP-compliant process. With its precision bottle loading system, stable conveyor transfer, and controlled water/air distribution panel, the machine ensures consistent cleanliness, high efficiency, and reliable performance for injectable, diagnostic, and laboratory vial production lines.
Parameter
- Model: ZS‑UWB6
- Applicable Volume: 3 / 5 / 7 / 10 ml (mold change required)
- Working Heads: 32 / 64 / 100 heads
- Capacity: 200–450 bottles/min
- Installed Power: 12.35 kW
- Water Consumption: 1 m³/h
- Water Pressure: 0.25–0.35 MPa
- Compressed Air Consumption: 60 m³/h
- Air Pressure: 0.25–0.35 MPa
- Ultrasonic Power: 2 kW
- Machine Dimensions: 2400 × 2100 × 1200 mm (L x W x H)
- Machine Weight: 400 kg
Rinsing Valve & Pressure Control
Controls purified water, reclaimed water, and compressed air distribution for each rinsing step, ensuring stable pressure and accurate flushing.
Bottle Loading System
Feeds bottles into the washing section in a continuous, accurately aligned manner, ensuring stable positioning and smooth transfer before ultrasonic cleaning.
Pre-Rinsing System
Performs initial rinsing to remove loose particles and surface contaminants, ensuring bottles enter the ultrasonic cleaning stage in a cleaner, more stable condition.
Ultrasonic Cleaning & PW/WFI Rinsing Section
Removes particles and residues through ultrasonic cleaning and high-purity PW/WFI rinsing, ensuring bottles meet pharmaceutical-grade cleanliness.

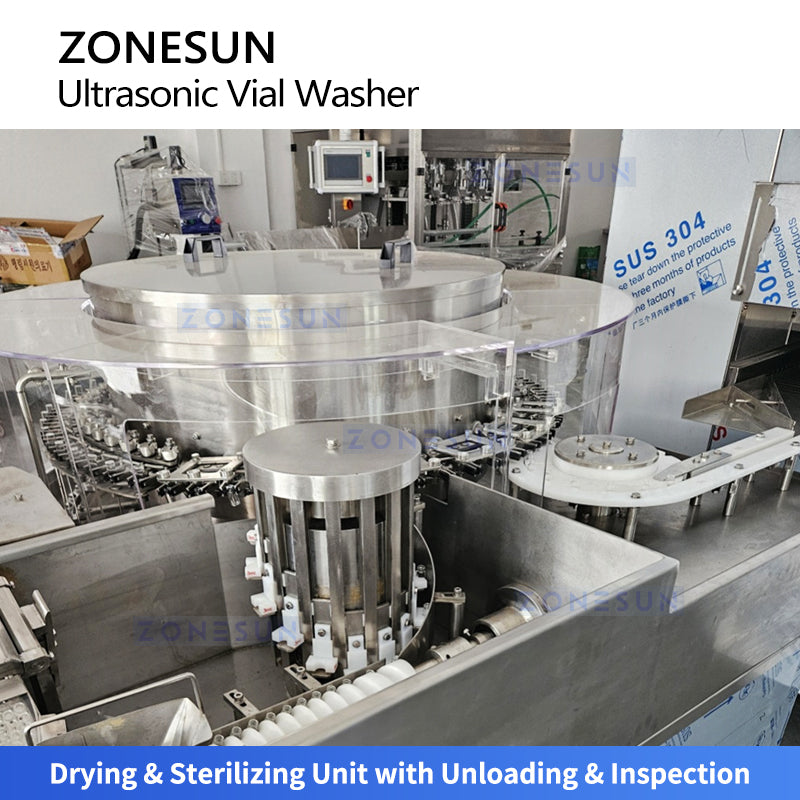

Drying & Sterilizing Unit with Unloading & Inspection
Dries and sterilizes bottles after washing, then unloads and inspects them to ensure they meet cleanliness and quality requirements before entering downstream processes.
