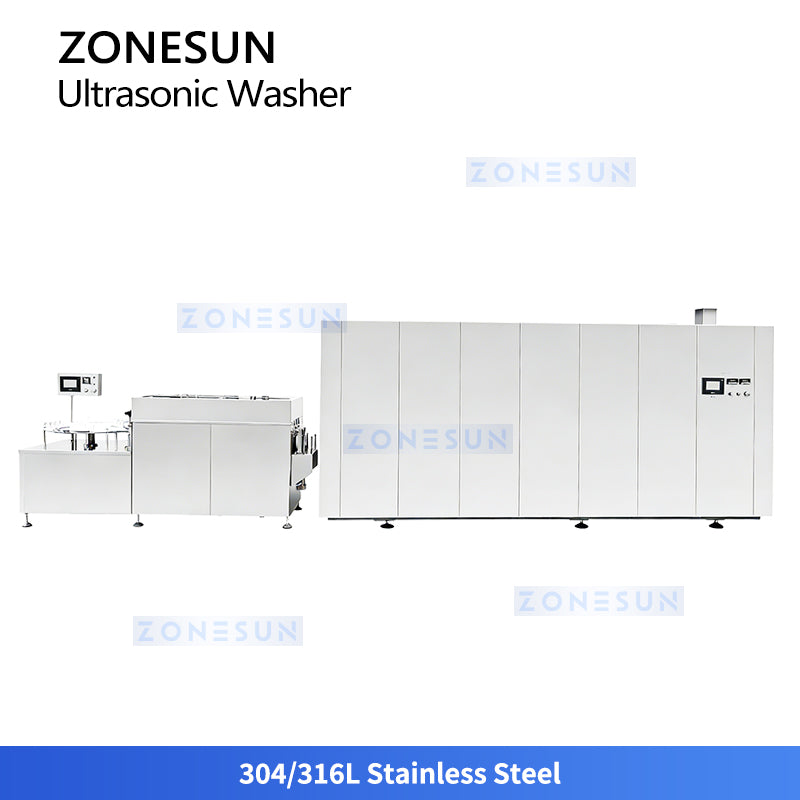

ZONESUN ZS-UWB7 Automatic Ultrasonic Dropper Vial Bottle Washing & Drying Machine

Description

The ZONESUN ZS-UWB7 is a high-speed ultrasonic bottle washing and drying machine designed for 2–10 ml small bottles. Operating at 210–240 BPM, it integrates ultrasonic cleaning, compressed-air rinsing, and high-temperature drying into a continuous automated process. Equipped with a touchscreen control panel, rotary bottle feeding tray, ultrasonic cleaning system, and drying oven conveyor belt, the machine ensures efficient, hygienic, and stable bottle preparation for pharmaceutical, cosmetic, and laboratory applications. Built with 304 stainless steel housing and 316L contact parts, it offers excellent corrosion resistance and long-term durability.

Parameter

• Model: ZS‑UWB7
• Application: Bottle washing and drying
• Applicable Bottle Size: 2–10 ml small bottles
• Production Capacity: 210–240 bottles/min
• Water Pressure: 0.25–0.3 MPa
• Water Consumption: 700 L/hour
• Compressed Air Consumption: 30 m³/hour
• Power Supply: 220V，380 V, 50 Hz
• Power: 4 kW
• Machine Dimensions: 2500 × 1000 × 1500 mm
• Machine Weight: 900 kg

Touchscreen Control Panel

Offers a simple interface for adjusting cleaning time, ultrasonic time, and temperature with real-time process control.

Rotary Bottle Feeding Tray

Feeds bottles onto the rotary platform and transfers them into the auger track via a star-shaped pulley with a magnetic clutch for smooth, stable, and continuous bottle infeed.

Ultrasonic Cleaning System

Uses ultrasonic cleaning and compressed-air rinsing to remove contaminants, then rotates the bottle 180° and transfers it to the outlet bucket for the next process.

Drying Oven Conveyor Belt

Transfers bottles through the heated drying chamber, ensuring uniform airflow and consistent drying as they move along the conveyor.

304/316L Stainless Steel

The outer part of the machine is made of 304 stainless steeland the contact part is made of 316L stainless steel.
