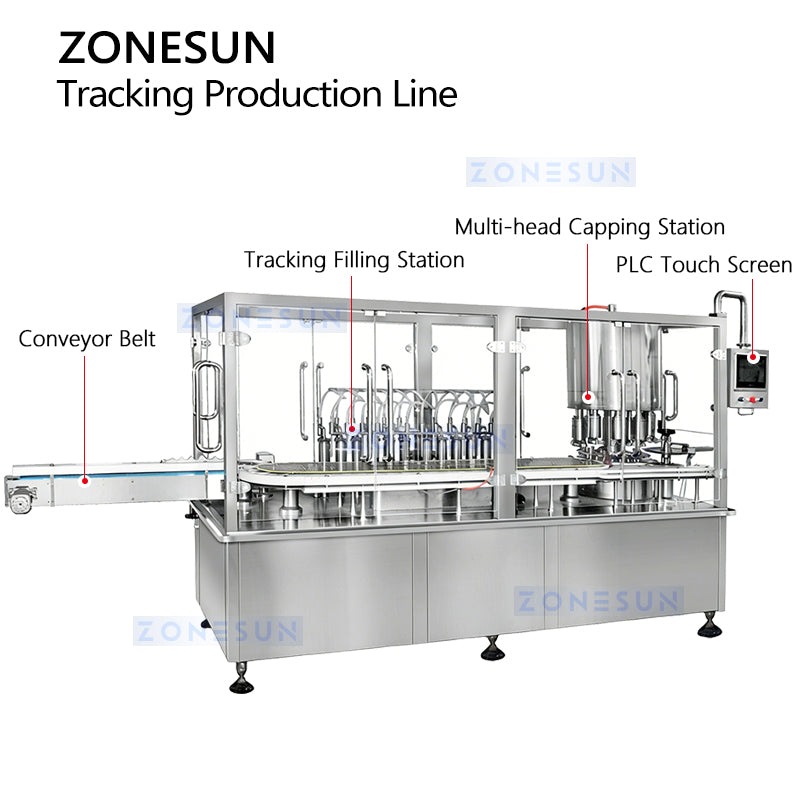

ZONESUN ZS-VTXG50 High-Speed Servo Tracking 50-500ml Bottle Filling & Capping Machine

Description

The ZONESUN ZS-VTXG50 is a servo-driven tracking filling and capping machine designed for continuous, high-speed liquid production lines. With a capacity of up to 7,800 bottles per hour, it synchronizes filling and capping heads with moving bottles, eliminating the need to stop the conveyor. This ensures smooth, accurate, and spill-free operation. Suitable for 50–500 ml glass or plastic bottles, the system integrates tracking filling, cap placing, capping, and conveying into a compact, efficient structure. It supports full line customization with bottle sorters and labeling machines for flexible production requirements.

Parameter

• Model: ZS‑VTXG50
• Production Capacity: 3600–7800 bottles/hour
• Applicable Bottle: 50–500 ml glass or plastic bottle
• Filling Accuracy: ±1%
• Power Supply: 380 V, 50 Hz, three‑phase four‑wire
• Power: 2 kW
• Overall Dimensions: 1800 × 900 × 1600 mm
• Weight: 900 kg

Tracking Filling Station

Synchronizes nozzle movement with moving bottles via servo tracking, enabling continuous high-speed filling with accurate, spill-free dosing.

Tracking Capping Station

Uses servo tracking to synchronize the capping head with moving bottles, enabling continuous high-speed cap placement and tightening with stable, precise torque control.

Bottle Sorting Machine

Arranges and orients bottles for smooth high-speed feeding, and can be customized to integrate with filling, capping, and labeling modules for a complete production line.

Conveyor Belt

Transfers bottles smoothly through each station, ensuring stable positioning and synchronized highspeed operation.
