ZONESUN ZS-WB16 Automatic Bottle Jar Cans Washing and Drying Machine

Description

The ZONESUN ZS-WB16 is an automatic bottle washing and drying machine designed for efficient cleaning, sterilization, and air-drying of bottles, jars, and cans. It uses automatic bottle feeding, a two-stage washing process, and heated air-drying technology to achieve high-efficiency decontamination and residue removal. Built with SUS304 stainless steel and compliant with food-grade hygiene standards, it supports containers made of glass, plastic, and metal, meeting the strict cleanliness requirements of food, beverage, cosmetics, and laboratory industries. Its modular structure adapts to various bottle types, making it suitable for both pre-filling preparation and post‑recycling treatment, ensuring product safety and extending shelf life.

Parameter

• Model: ZS‑WB16
• Voltage: 110 / 220 / 380 V, 50/60 Hz (customizable)
• Power: 37.55 kW
• Processing Objects: Bottles / cans / jars
• Material: SUS304 stainless steel
• Capacity: 500–800 bottles/h
• Washing Heads: Customizable
• Machine Size: 4500 × 850 × 1100 mm (customizable)
• Package Size: 5800 × 1000 × 1100 mm
• Weight: 1500 kg

Control Box

Provides an intuitive interface for simple operation, convenient maintenance, and adjustable running speed control.

Inlet

Provides fast-installation doors for easy access and convenient maintenance of the washing and drying section.

Water Tank

Stores and circulates clean water for the washing process, ensuring stable supply and efficient bottle cleaning.

Air drying device

Provides heated, adjustable-temperature air to dry bottles efficiently and meet different cleaning and air-drying requirements.

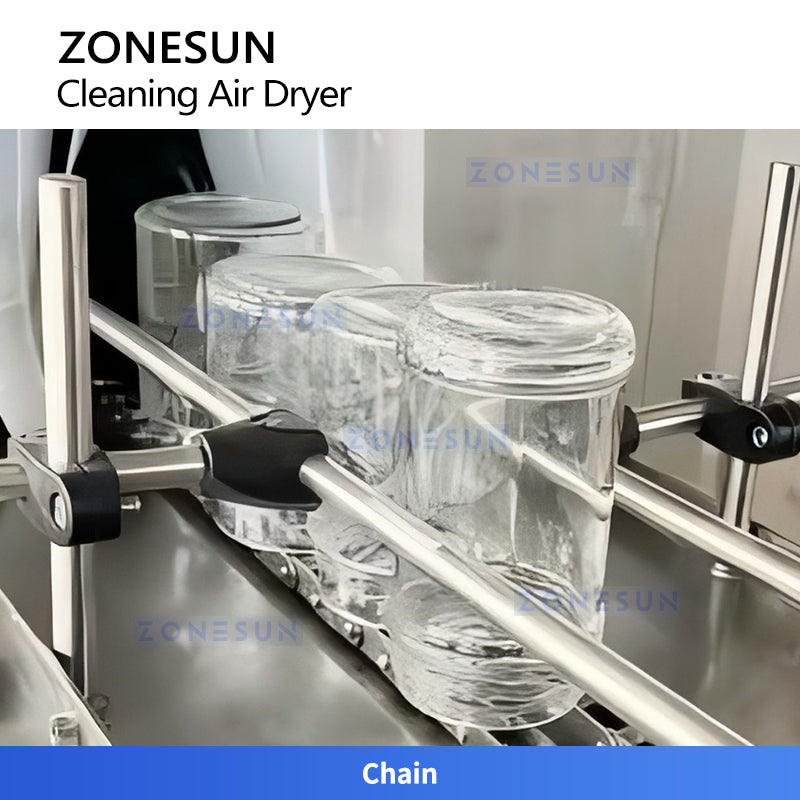

Chain

Adjusts track width and height to accommodate bottles of different sizes and ensure stable conveying.
