ZONESUN ZS-ZB350S Servo Horizontal Flow Wrapper Air Bubble Film Wrapper

Description

The ZONESUN ZS-ZB350S is a fully automatic servo-driven horizontal flow wrapping machine designed specifically for air bubble film packaging. Operating at 5–20 bags/min, it supports variable, fixed, and color-mark bag length modes without length limitation, enabling flexible adaptation to different product sizes. Equipped with a precise forming and sealing structure, anti-cut protection system, and advanced control board, the machine ensures high stability, synchronized motion, and reliable sealing quality. Its servo control, stable film feeding, and efficient discharge system make it ideal for large-scale packaging of fragile products and air-bubble-wrapped products.

Parameter

• Model: ZS‑ZB350S
• Power Supply: 110 V, 50/60 Hz
• Power Consumption: 6.3 kW
• Max Film Width: 340 mm (590 mm / 790 mm optional)
• Bag Length: ≥ 120 mm
• Bag Width: 30–110 mm
• Max Product Height: 60 mm
• Max Film Roll Diameter : 320 mm
• Packaging Speed: 5–20 bags/min
• Machine Dimensions(L x W x H): 4715 × 804 × 1550 mm
• Machine Weight: About 650 kg

Control Panel

Manages machine parameters, monitors running status, and coordinates sealing and feeding actions to ensure stable, precise packaging performance.

Control Panel

Manages machine parameters, monitors running status, and coordinates sealing and feeding actions to ensure stable, precise packaging performance.

Discharge Brush

Maintains bag alignment, removes debris, and prevents static for smooth outfeed.

Film Roll Holder

Supports the film supply system by holding the roll securely and enabling controlled rotation for consistent, reliable feeding into the packaging process.

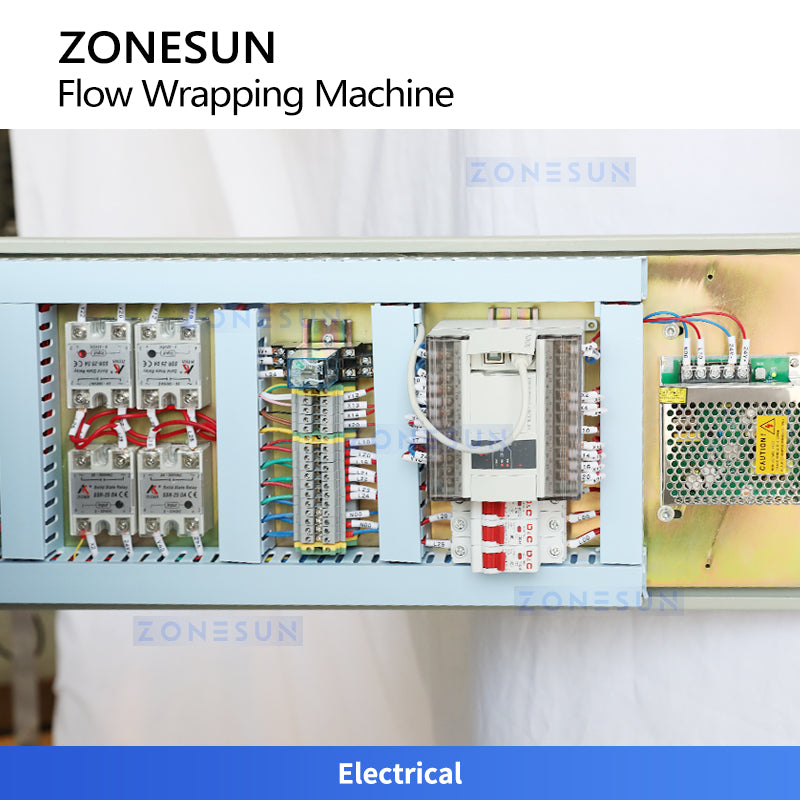

Electrical

Advanced control board ensures high stability and synchronization, improving the reliability, safety, and consistency of machine operation.
