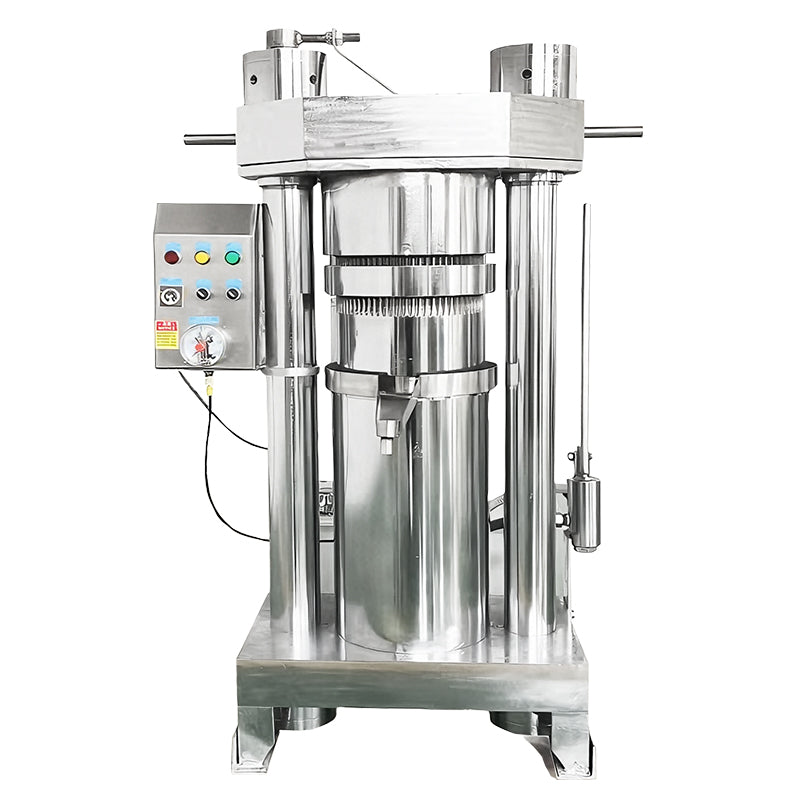

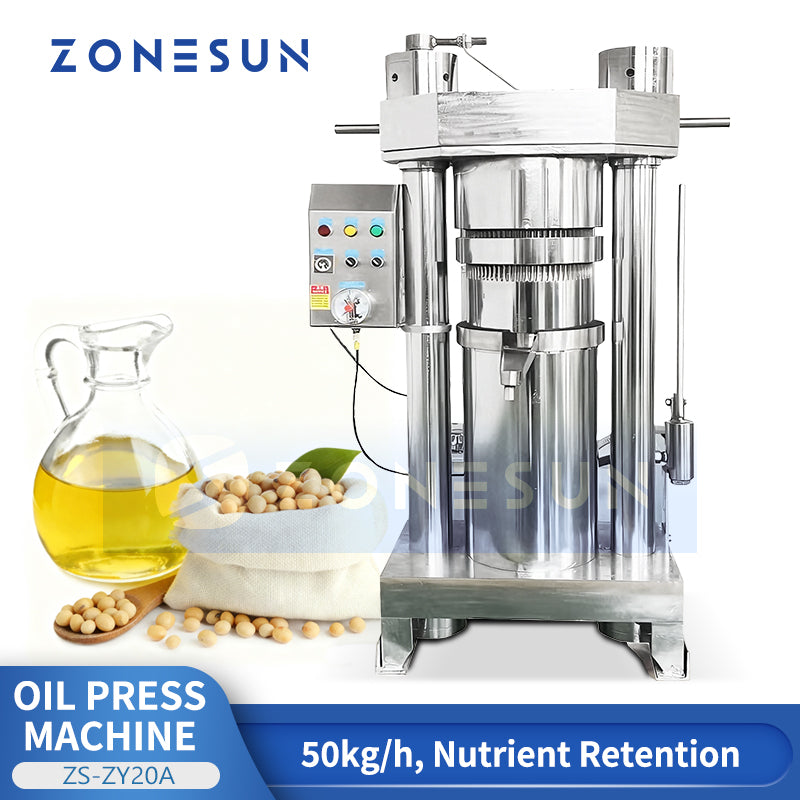

ZONESUN ZS-ZY20A Hydraulic Oil Pressing Machine for Olive, Peanut, Coconut & Seed Oils

Description

The ZONESUN ZS-ZY20A Automatic Hydraulic Oil Press Machine utilizes a high-pressure hydraulic system to efficiently extract oils from seeds and fruits while preserving their natural nutrients and flavors. With a production capacity of 16–20 kg/h and supporting both cold and hot pressing methods, it is suitable for producing olive oil, peanut oil，coconut oil, avocado oil, cocoa butter, and more, delivering clear, food-grade oil directly. Featuring stable performance, nutrient retention, and durable construction, this machine is widely applied in food processing, cosmetics, pharmaceuticals, and industrial sectors, making it a reliable solution for high-quality natural oil extraction.

Parameter

• Model: ZS-ZY20A
• Machine Dimensions (L×W×H): 700 × 800 × 780 mm
• Machine Weight: 240 kg
• Working Pressure: 55–60 MPa
• Heating Power: 600 W
• Heating Temperature: 70–90°C
• Material Barrel Capacity: 2 kg
• Oil Cylinder Diameter: 154 mm
• Oil Yield Rate: 43%–47%
• Motor Power: 0.75 kW

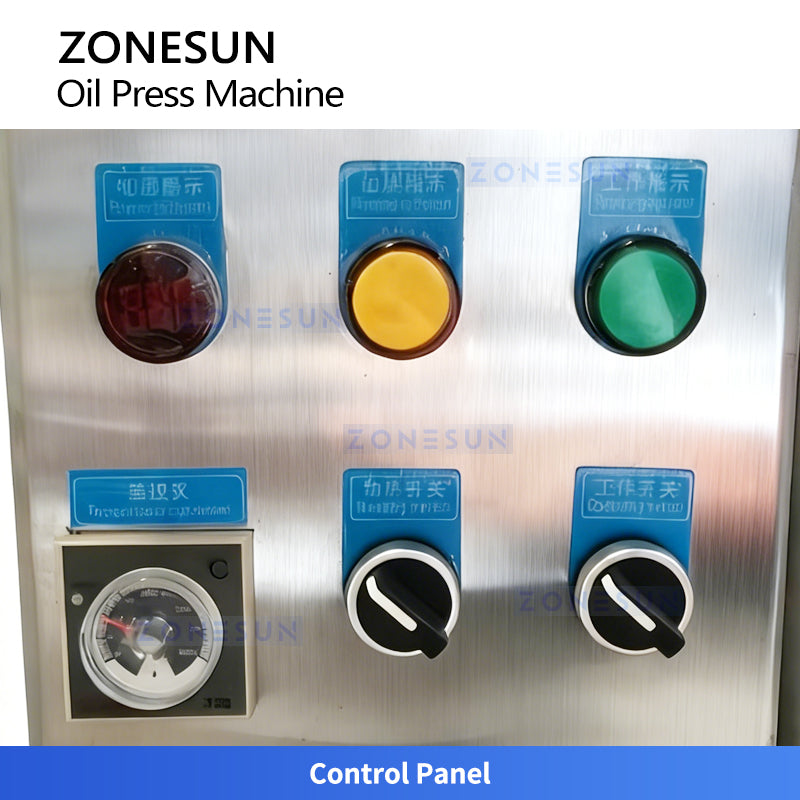

Control Panel

Controls pressure and temperature with heating, buttons handle start/stop, adjustments, and safety monitoring.

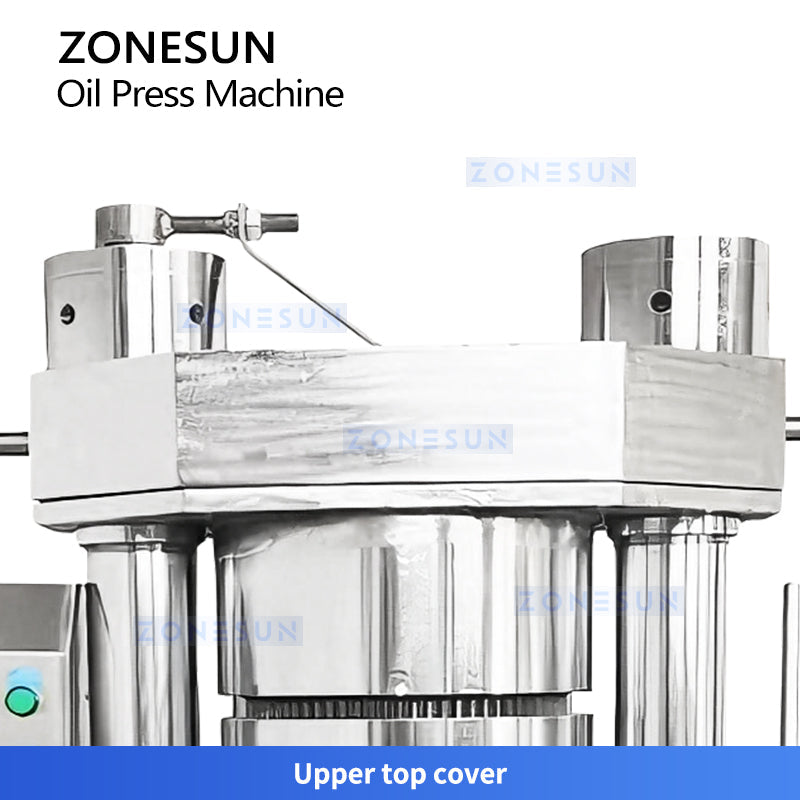

Upper top cover

High-strength manganese top cover supports and seals the chamber, withstanding high pressure for safe and stable operation.

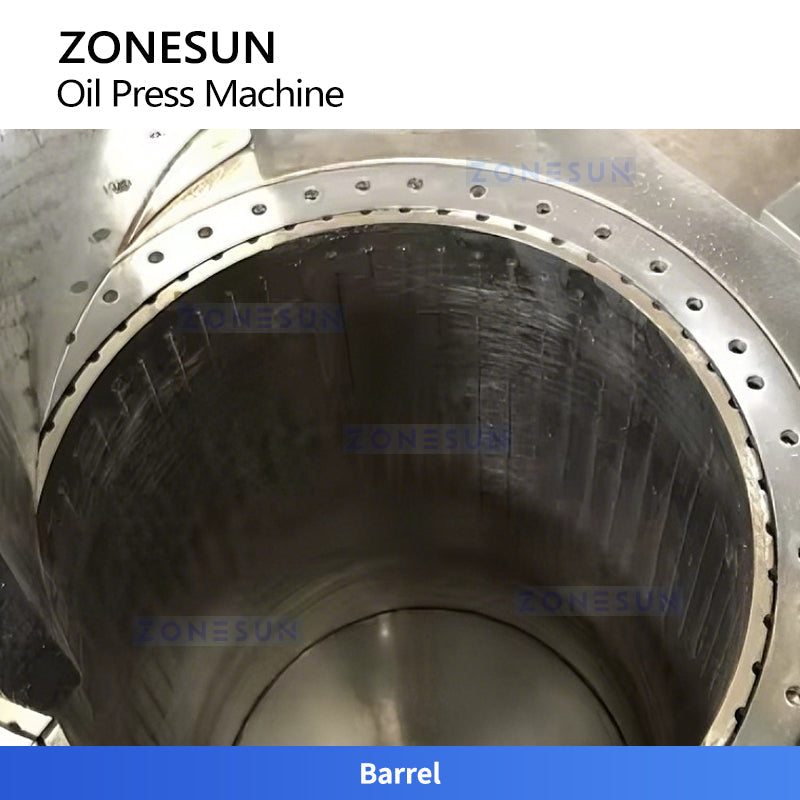

Barrel

High-strength steel barrel with 0.36 mm oil line filters residues and delivers clear, cooking-grade oil safely.

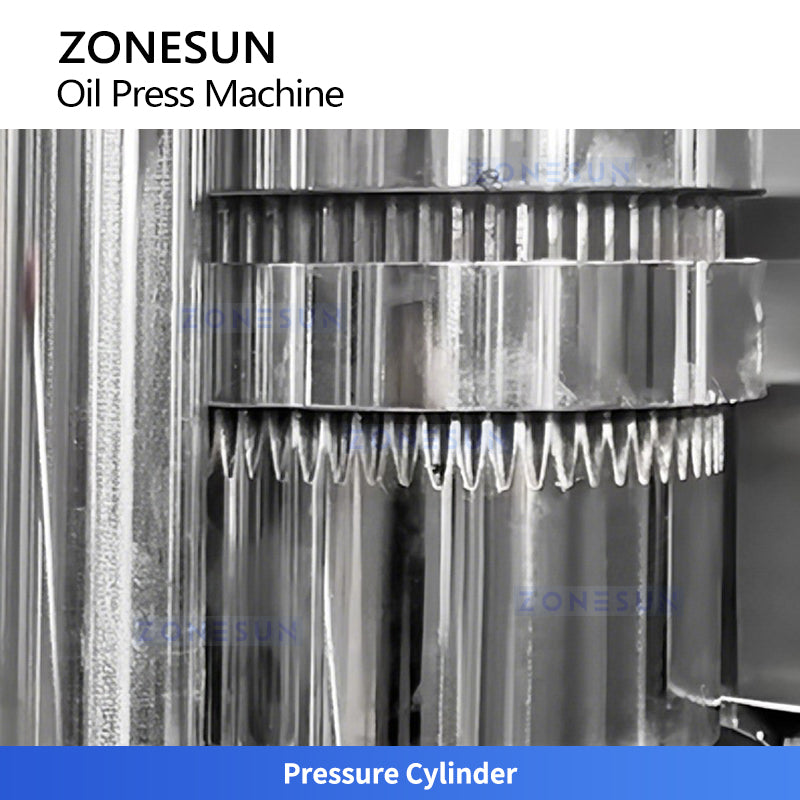

Pressure Cylinder

Made from carbon steel, the oil cylinder's high pressure pushes upward, allowing oil to flow out through the oil lines.

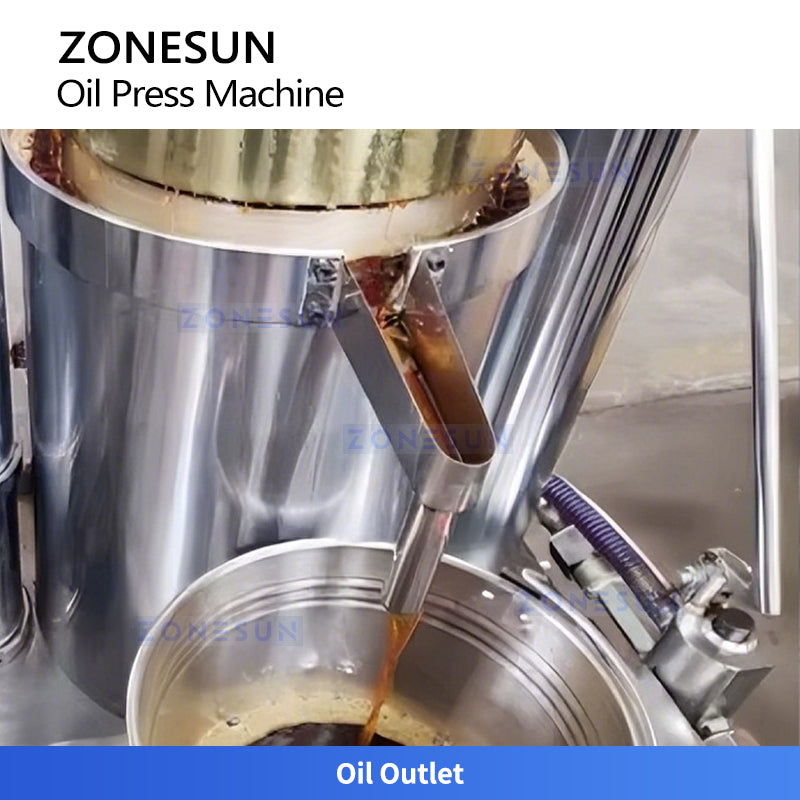

Oil Outlet

Directs filtered oil out of the barrel; ensures smooth flow of clear, cooking-grade oil.
