DESCRIPTION

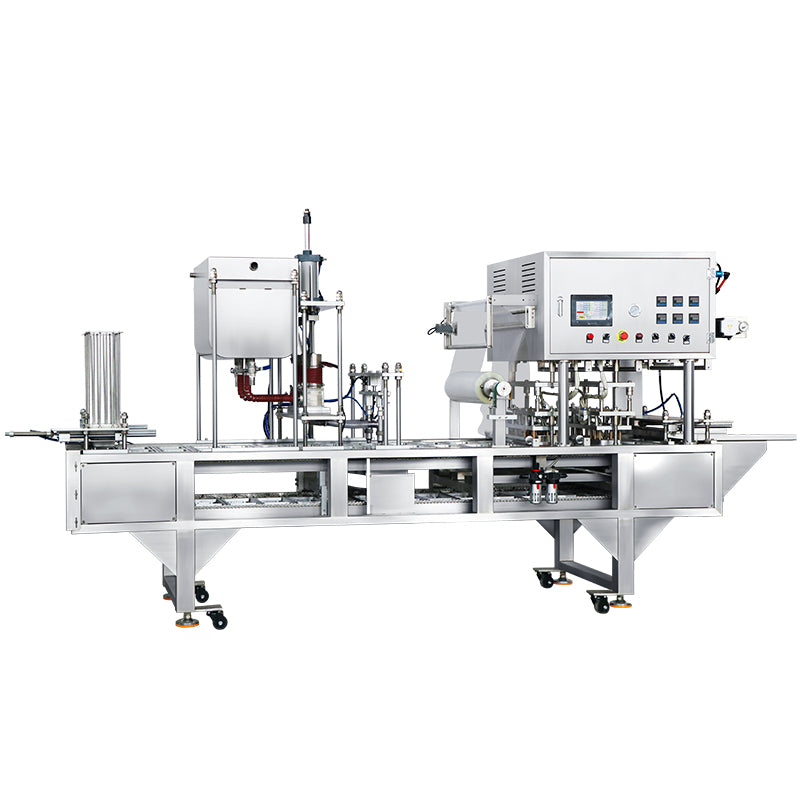

This is a custom machine for a buyer from America. It is used to fill paraffin wax into cups and seal them. It adopts a mold conveyor to transport the cups and cyclic heating for filling. Whatever your packaging needs are, you can rely on ZONESUN.

ZONESUN ZS-AFS01 Automatic Liquid Filling Machine – Technical Specifications
Parameter Details
Model ZS-AFS01
Power Consumption Approx. 8 kW
Voltage 380V / 50Hz
Filling Pump Type Piston Pump
Number of Filling Heads 2
Working Speed Approx. 10–30 pieces/min (varies by liquid type and volume)
Air Consumption 0.7 m³/min
Machine Dimensions Approx. 3600 × 968 × 1595 mm
Packing Dimensions Approx. 3800 × 970 × 2020 mm
Package Weight Approx. 1000 kg

PRODUCT DETAILS

CONTROL PANEL

PLC controls, color display touchscreen.
Barometer and thermostats, all-in-one.
Easy learning and user-friendly.

CUP FEEDING

Custom holder, mold conveyor design.
Smart detecting, auto feeding.

FILLING

Large hopper of 40L, interlayer heating, with a liquid level detector.
Heating wires, piston pump, diving nozzles.

FILM FEEDING

Auto-feeding, smart sensor, no waste of the film.

SEALING

Heat sealing and cutting, customizable for cups of different sizes.
Auto-erecting the finished products, labor-saving.
