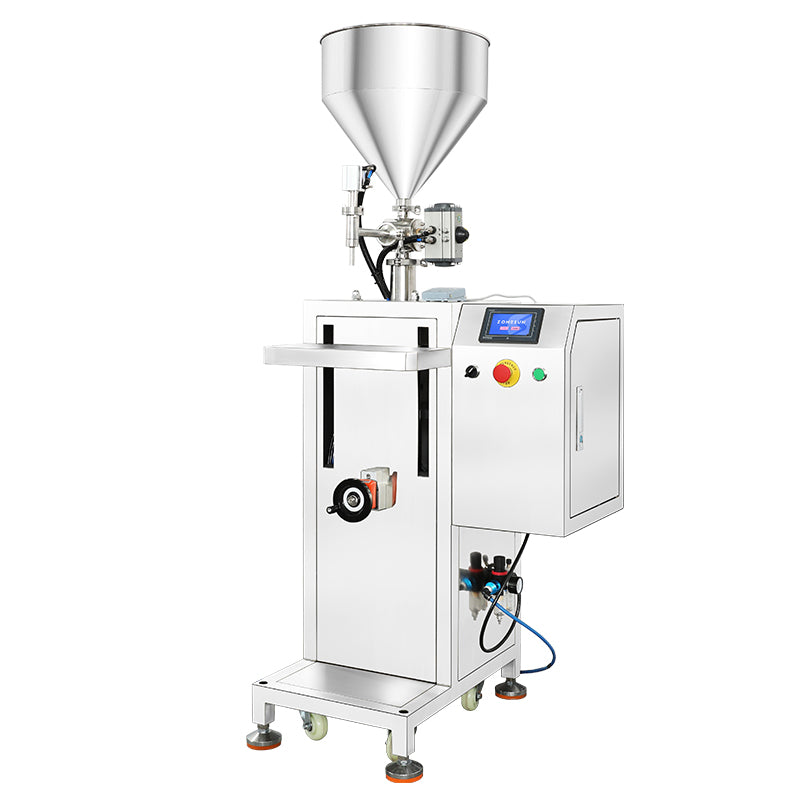

ZONESUN ZS-GTSM1 Semi-automatic Servo Motor Rotor Pump Paste Filling Machine
ZONESUN ZS-GTSM1 Semi-automatic Servo Motor Rotor Pump Paste Filling Machine
Não foi possível carregar a disponibilidade de recolha
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
DESCRIPTION
Compared with other paste filling machines, this one is controlled by a servo motor, which brings high accuracy. It is easy to set the parameter to adjust the filling volume and speed. This machine is widely used in food, daily chemical and cosmetics industries.
APPLICATIOIN
This machine is suitable for filling paste such as honey, glue, syrup, ketchup, etc.
PARAMETER
- Model：ZS-GTSM1
- Voltage：220/110V 50/60Hz
- Power：About 950W
- Filling Accuracy：≤±0.5%
- Filling Speed：About 10-25 bottles/min (depend on bottle size and liquid)
- Filling Volume：5-100/10-300/50-500/100-1000ml
- Equipped with Air Pressure：0.4-0.6 MPa
- Air Consumption：≥0.1m³/min
- Machine Size：About 580*590*1590
- Machine Weight：About 92kg
- Package Size：About 700*1520*700mm
- Package Weight：About 116kg

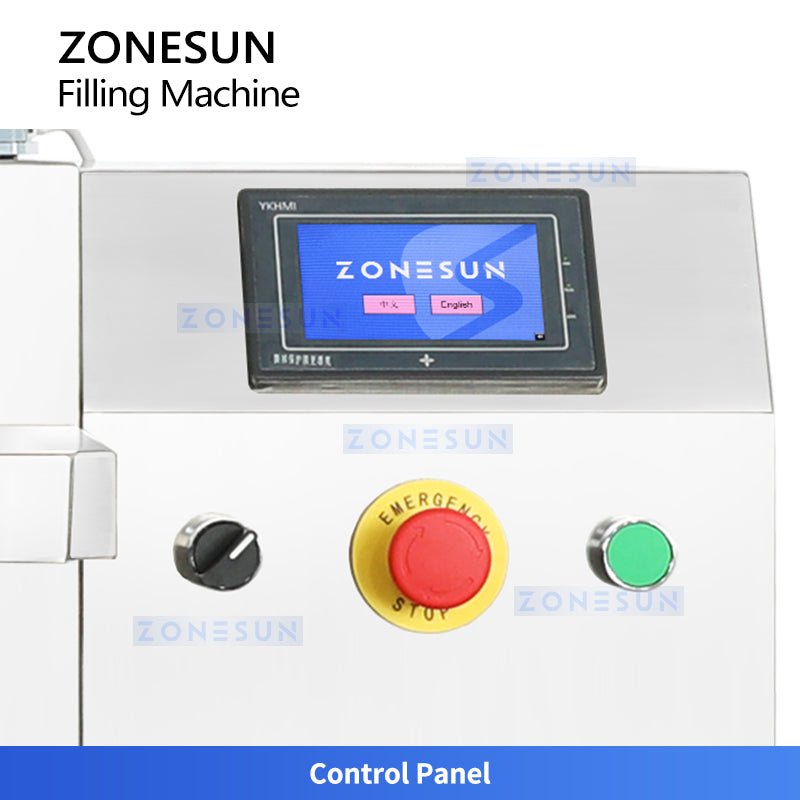

PLC Control Panel
With touch screen panel, it’s easy to set working parameters. The language of panel can be customized according to customers’ need.

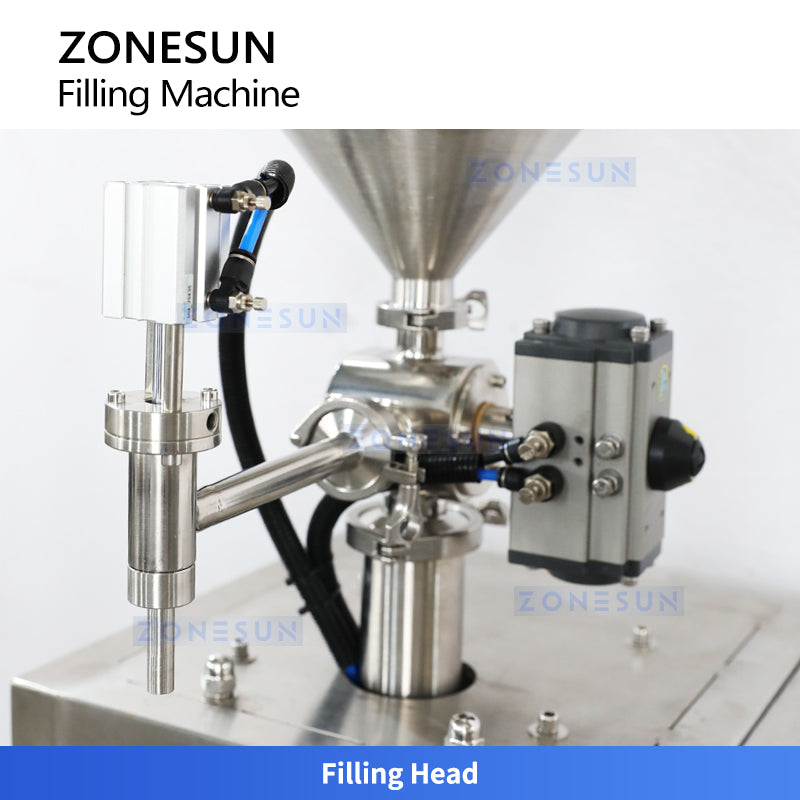

Filling Head
With pneumatic filling head, it can fill liquid/paste accurately and quickly, improving working efficiency.

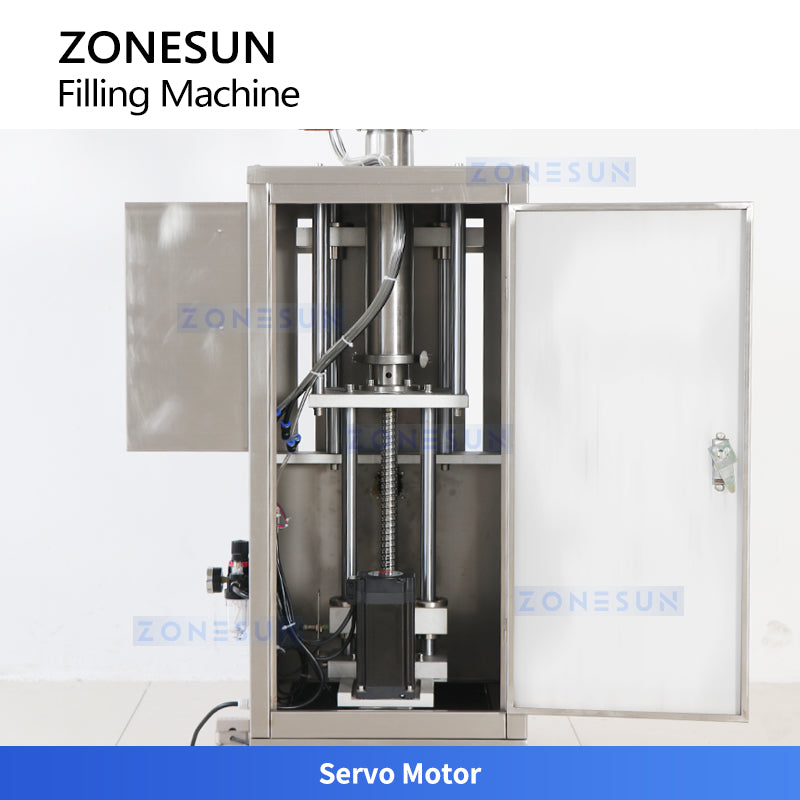

Servo Motor
Driven by servo motor, it can fill paste/liquid accurately. The piston pump is suitable for filling liquid or paste with particles, like fruit grains.

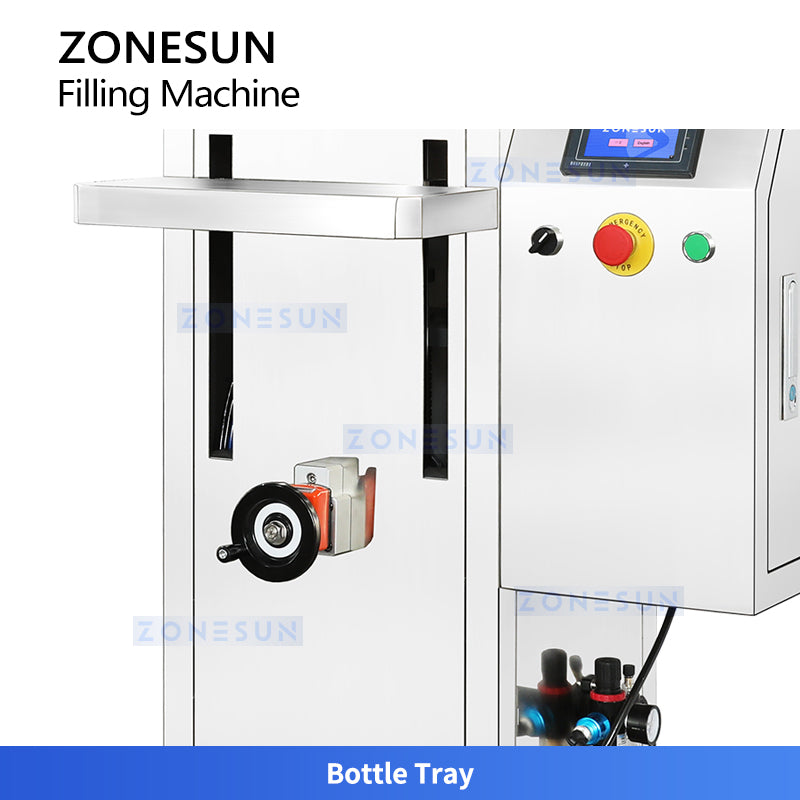

Bottle Tray
The position of bottle tray can be adjusted by the black handle, making it suitable for bottles of different heights. Easy to operate.

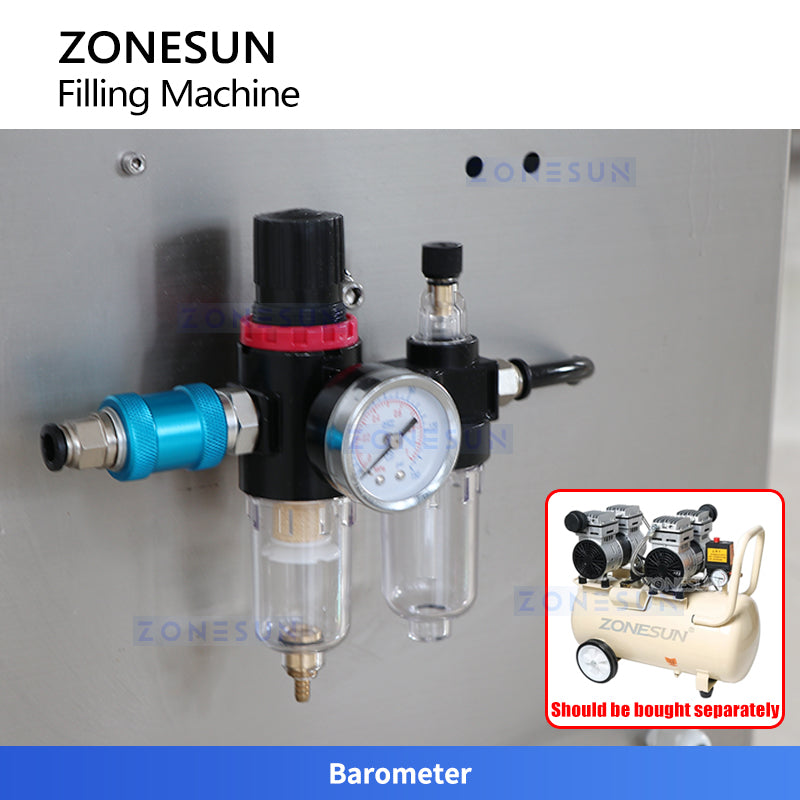

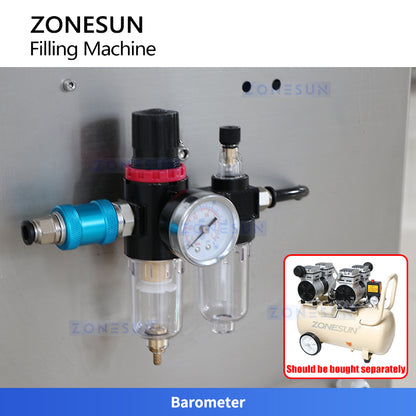

Barometer
With it, you can watch air pressure in real time. This machine should work with air compressor, which should be bought separately. Please contact us if you need.
