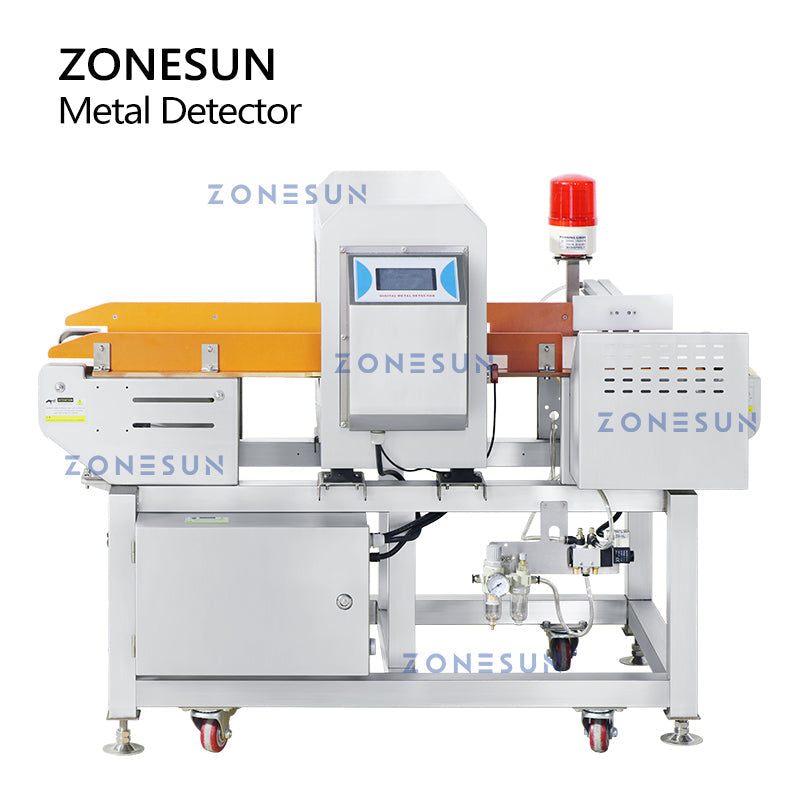

ZONESUN ZS-MD1 Metal Detector
ZONESUN ZS-MD1 Metal Detector
Não foi possível carregar a disponibilidade de recolha
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
DESCRIPTION
The conveyor belt metal detector is used to detect metal objects mixed in the production process of food, cosmetics, and so on. The system can use the alarm signal to drive an automatic rejection device, so as to exclude metal impurities from the production line. It can detect magnetic and non-magnetic metal impurities, even if the metal is sealed in the product. Therefore, it protects downstream equipment, reduces downtime, protects product quality, and recovers investment costs in the shortest time.
PARAMETER
Parameter Details
Model ZS-MD1
Voltage 220V, 50–60Hz
Power 90W
Conveyor Width 400 mm (customizable)
Maximum Load 15 kg
Detection Height 200 mm (customizable)
Applicable Metals • Ferrous: ≥φ1.2 mm <br> • Non-ferrous: ≥φ1.8 mm <br> • Stainless steel: ≥φ2.3 mm
Detection Speed 25–30 m/min
Machine Weight Approx. 220 kg
Machine Dimensions Approx. 133 × 72 × 100 cm
PRODUCT DETAILS
DETECTING
It can detect magnetic and non-magnetic metal impurities, even if the metal is sealed in the product.
REJECTION
The system can use the alarm signal to drive an automatic rejection device, so as to exclude metal impurities from the production line.
CONTROL PANEL
PLC control, color display touchscreen, records traceable.
It works with an extra air compressor that is sold separately.
