ZONESUN ZS-QWFS1 Aerosol Can Filling and Sealing Machine Fill Gas And Liquid

Description

The ZS-QWFS1 Aerosol Filling Machine is a multifunctional solution for aerosol packaging, capable of filling liquefied gas, sealing mounting cups, and injecting propellants with precision. Each operation is independently controlled for enhanced flexibility and efficiency. Widely used across industries such as pharmaceuticals, hygiene, automotive care, environmental protection, firefighting, and daily chemical production, this machine ensures reliable performance and consistent output for high-volume aerosol manufacturing.

Parameter

• Machine Model：ZS-QWFS1

• Voltage：110V / 220V

• Liquid Filling Range：20–450 ml

• Liquid Filling Nozzle：OD 20 mm, Stainless Steel

• Propellant Filling Range：20–450 ml

• Propellant Input：M22×1.5 Anti-threads

• Filling Accuracy：≤ ±1%

• Aerosol Height ：70–330 mm

• Aerosol Diameter：φ 35–65 mm

• Working Speed：1200 pcs/h (based on 100 ml/pc)

• Air Pressure：0.5–1.0 MPa

• Max Air Consumption：1 m³/min

• Machine Size：1220 × 630 × 1550 mm

1) Liquid filling 2) Put the valve in the can 3) Capping 4) Propellant filling

3-IN-1

It can fill the liquified gas, press mounting cups, and fill the propellants. Also, the three heads can be controlled separately.

KNOB

 The height of the heads is adjustable, which is suitable for aerosols of different sizes.

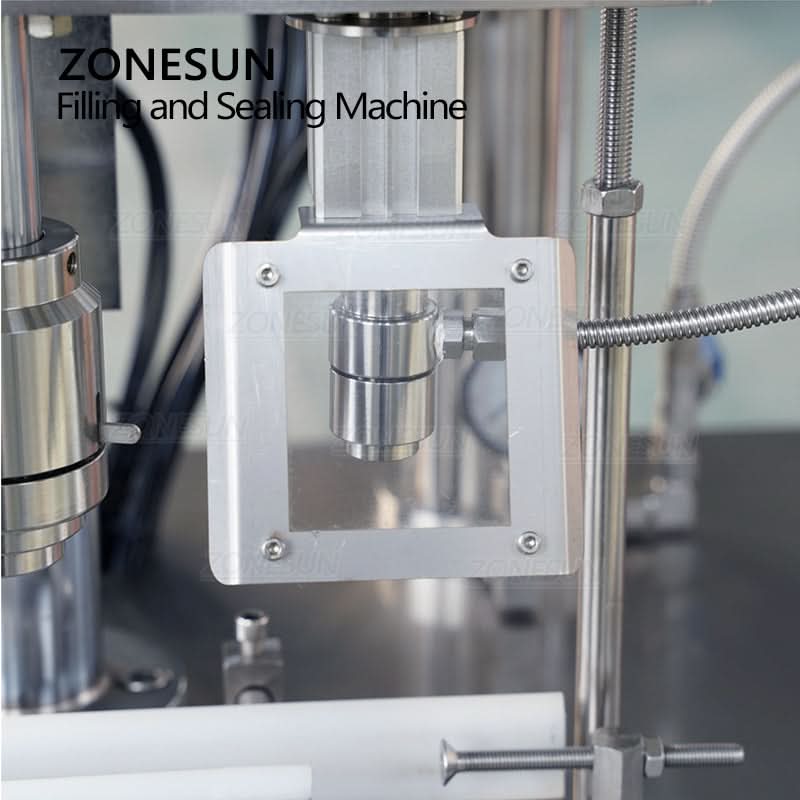

SAFETY COVER

There is a cover with the propellant filling head, ensuring the safety of the operator.
