DESCRIPTION

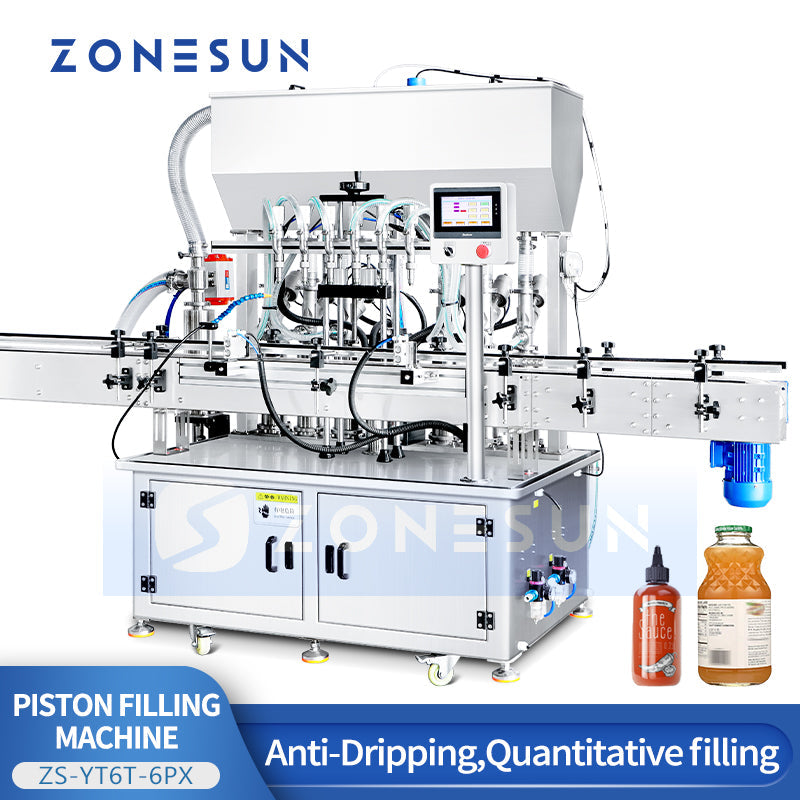

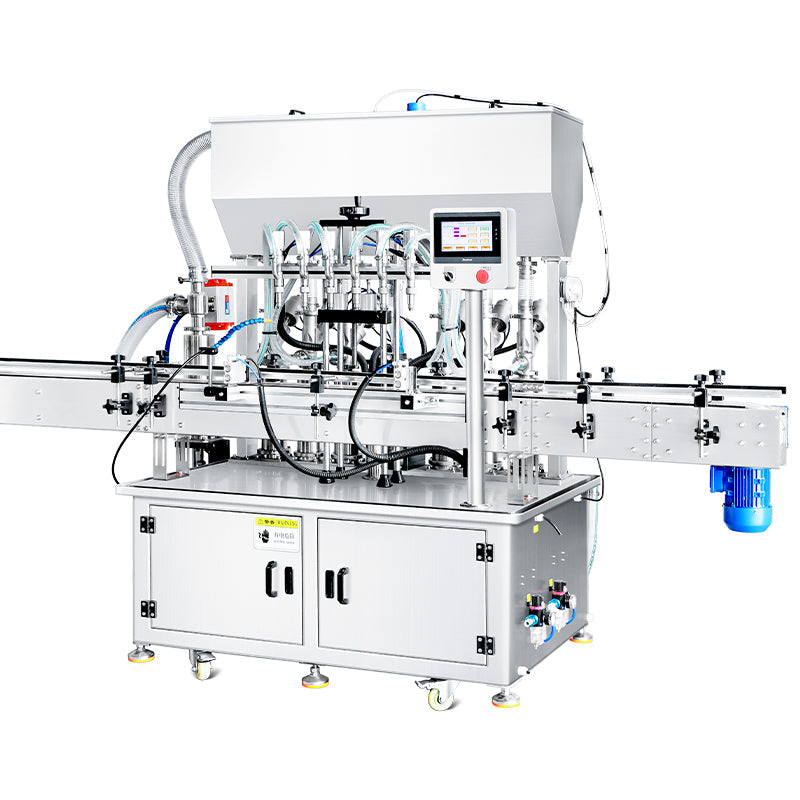

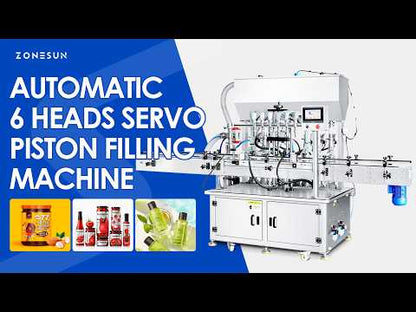

The ZONESUN ZS-YT6T-6PX is a 6-head automatic servo piston paste filling machine featuring a large 160L hopper with integrated feeding pump for continuous, high-volume production. Using 6 servo-controlled piston pumps, operators can set fill volumes directly on the touchscreen — delivering ±1% accuracy at speeds of 30–70 bottles/min depending on material and bottle size.
Designed for creams, sauces, gels, honey, shampoo, and other viscous or paste products, the ZS-YT6T-6PX combines precision servo control with a customizable hopper (mixing and heating options available) and anti-drip nozzles — making it ideal for cosmetic, food, and chemical packaging lines.
Technical Specifications
| Model | ZS-YT6T-6PX |
| Voltage | 220V / 110V, 50–60 Hz |
| Power | 2 kW |
| Filling Heads | 6 heads (customizable) |
| Filling Range | 100–1,000 ml (customizable) |
| Hopper Capacity | 160 L (120L for <1,000ml range) |
| Filling Speed | ~30–70 bottles/min (depending on material & bottle size) |
| Filling Pump | Servo piston pump |
| Filling Accuracy | ±1% |
| Air Pressure | 0.5–0.8 MPa |
| Data Storage | Available |
| Machine Size (L×W×H) | ~3,020 × 900 × 1,850 mm |
| Package Size (L×W×H) | ~2,030 × 900 × 1,980 mm |
| Package Weight | ~401 kg |

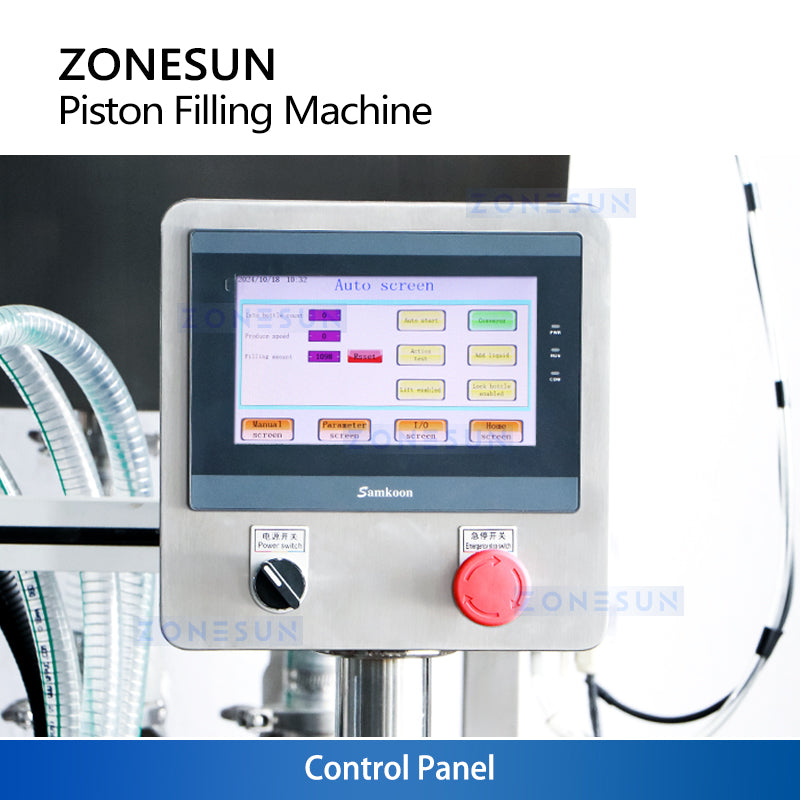

Control Panel
Set filling volumes directly on the touchscreen control panel with intuitive parameter adjustment. Supports data storage function for saving and recalling recipes across different SKUs — reducing setup time and operator error.

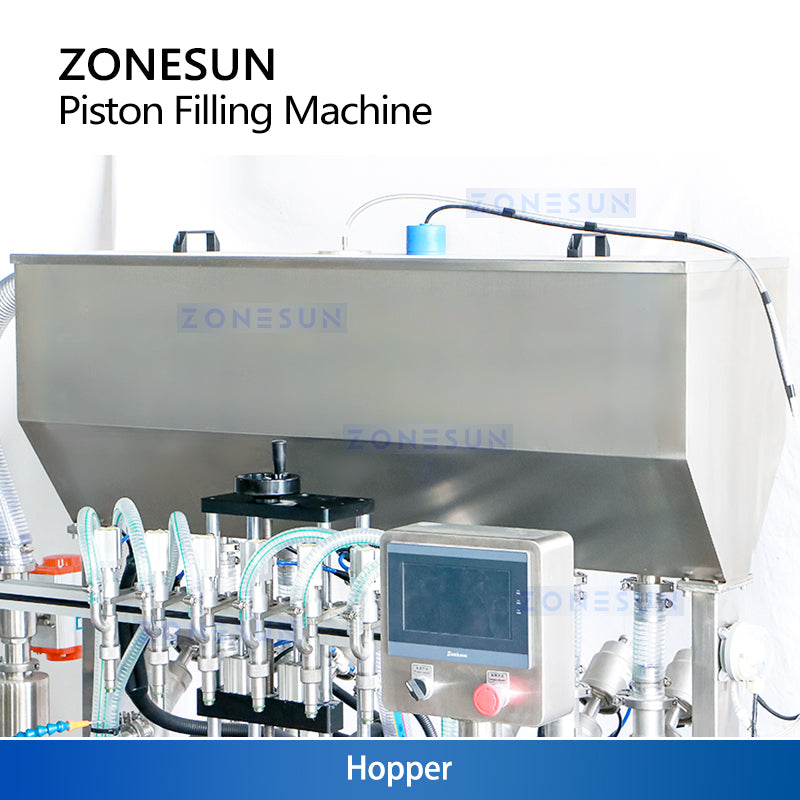

Large Hopper
The 160L hopper capacity ensures continuous material supply for uninterrupted high-volume production. Optional mixing and heating functions are available for raw material pretreatment — ideal for temperature-sensitive creams and pastes.

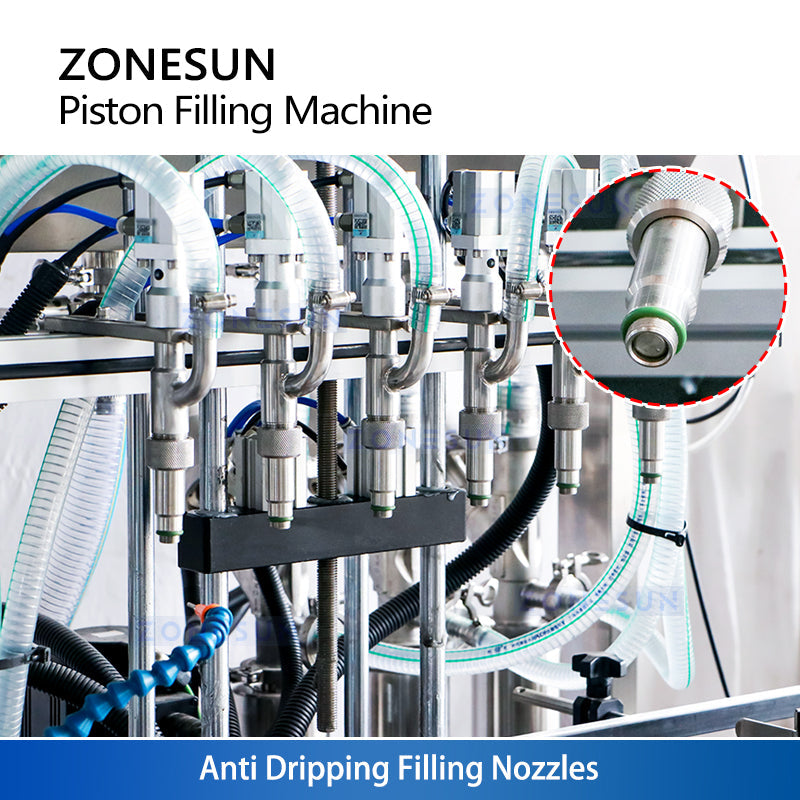

Anti-Drip Filling Nozzles
Nozzle quantity is customizable. Anti-drip nozzle design effectively prevents product stringing and residue after each fill cycle — improving filling accuracy, reducing waste, and maintaining a clean production environment.

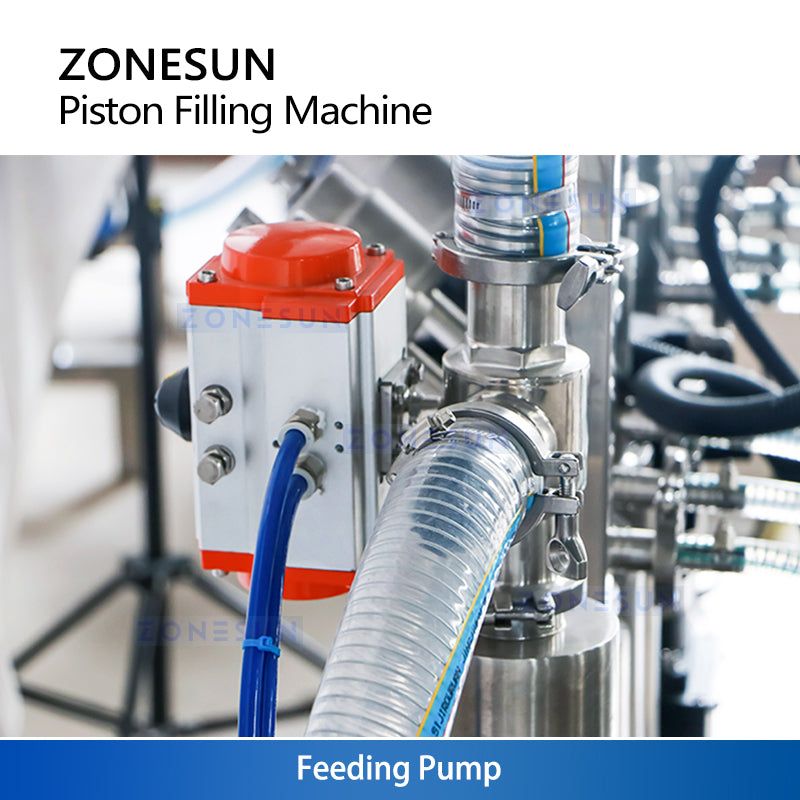

Feeding Pump
The integrated feeding pump continuously transports filling material from the hopper to the nozzles, acting as a final controlling element to improve filling accuracy for thick pastes and products with granules — ensuring consistent output even with challenging materials.

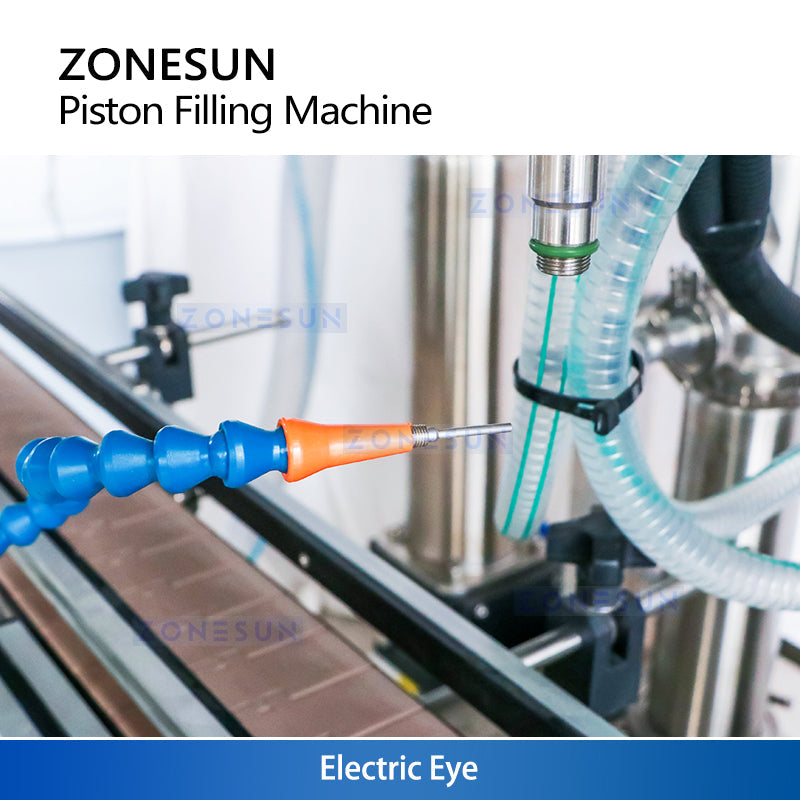

Electric Eye (Bottle Detection)
The electric eye sensor detects passing bottles and triggers automatic filling — enabling no-bottle no-fill operation that prevents product waste, contamination, and conveyor mess during continuous production runs.
Chain Conveyor
The chain conveyor length and width are fully customizable to match your production line layout. Built with a high weight capacity to handle heavy containers reliably across extended production shifts.
Suitable Applications
