ZONESUN ZS-YT6T-6V Automatic Piston Pump Liquid Filling Machine With MIxing Tank

ZONESUN ZS-YT6T-6V Automatic Piston Pump Liquid Filling Machine With MIxing Tank

Preço normal $7,379.00 USD
Preço normal Preço de saldo $7,379.00 USD
Em promoção Esgotado
Envio calculado na finalização da compra.
Voltage

DESCRIPTION

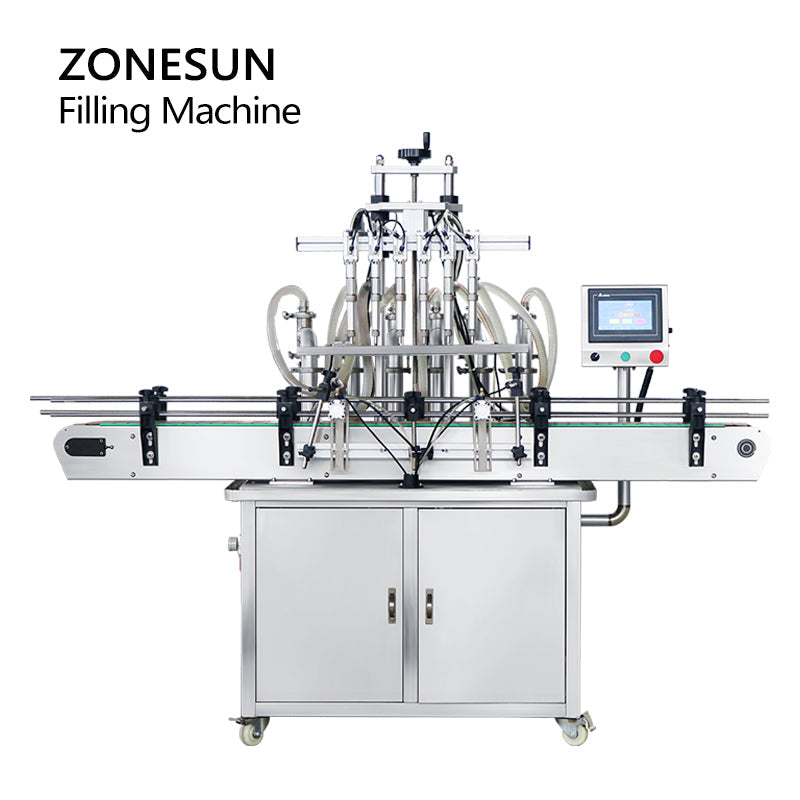

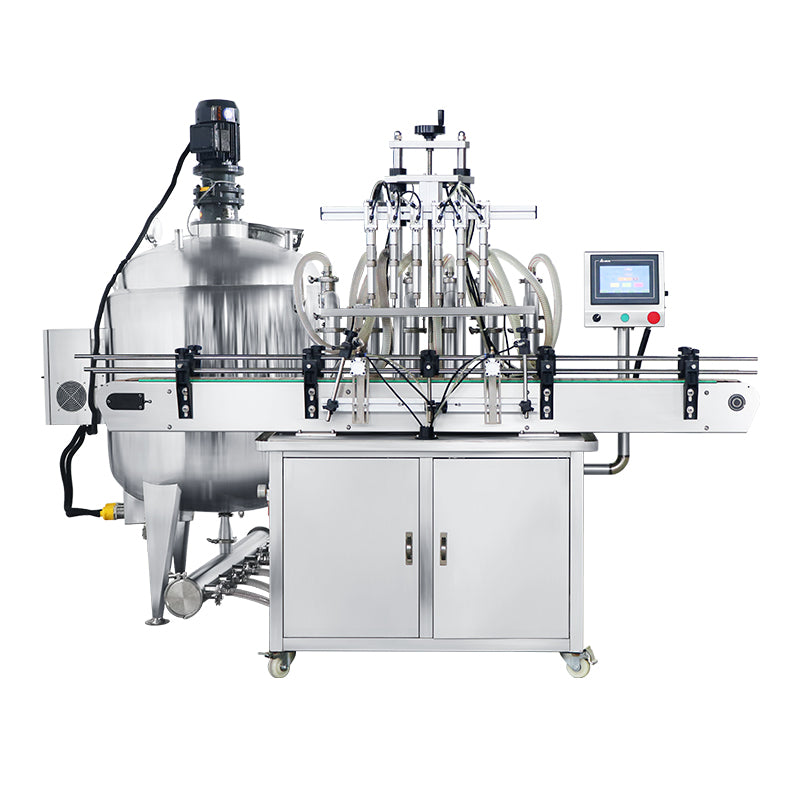

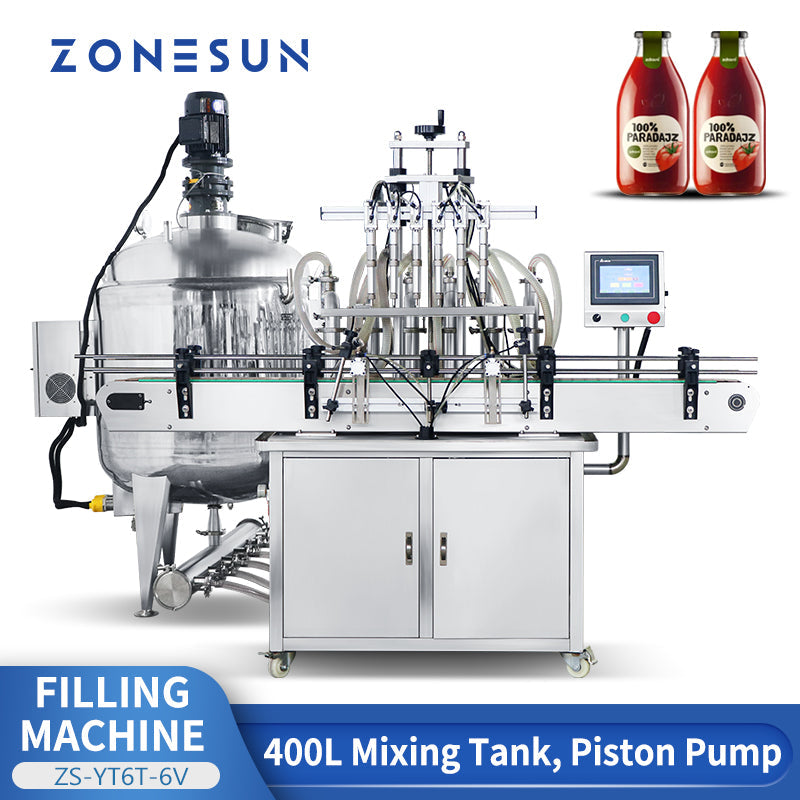

This filling machine is equipped with a mixing tank. It can emulsify liquids. The filler adopts piston pumps, which is powerful for filling paste. It is widely used in the cosmetics and daily chemical industry.

PARAMETER

FILLING MACHINE

Model

ZS-YT6T-6Y

Voltage

110/220V 50-60HZ 800W

Filling Range

5-100ml/10-300ml/50-500ml/

100-1000ml/500-3000ml/1000-5000ml

Working Speed

30-40bottles/min

Filling Accuracy

≤±1%

Air Pressure

0.5-0.7MPa

Size Of Air Compressor Connector

φ10mm

Conveyor Length

2050mm(standard ) / 3050mm(wider version)

Conveyor Material

Plastic(standard) / stainless steel(custom version)

Package Size

About 2110*2010*1000mm (100-1000ML)

Package Weight

About 476kg(100-1000ML)

MIXING TANK

Machine Model

ZS-MB400LH

Voltage

220V 50-60Hz

Tan Capacity

400L(Can be customized)

Tank Size

Diameter: 800mm, H: 1000mm

Stirring Motor

1.1kW

Rotating Speed

40r/min

Heating Power

12kW

Machine Material

304 Stainless Steel

Package Size

About 1300*1100*2160mm

Gross Weight

About 403kg







PRODUCT DETAILS

MIXING TANK



400L, customizable paddle, with heating function



FEEDING



Multiway valve, directly connect to the hoses.



FILLING



Pneumatic filling heads, with an anti-dripping design.



PUMP

Piston pumps, strong and powerful
